Hebei Changhua Star Vehicle Co., Ltd.

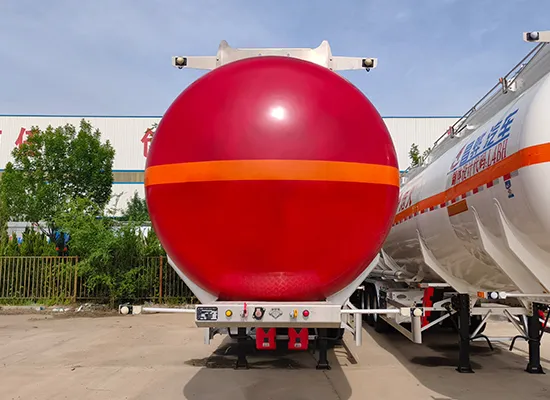

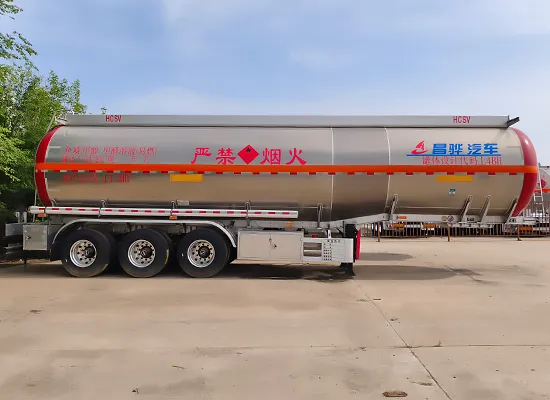

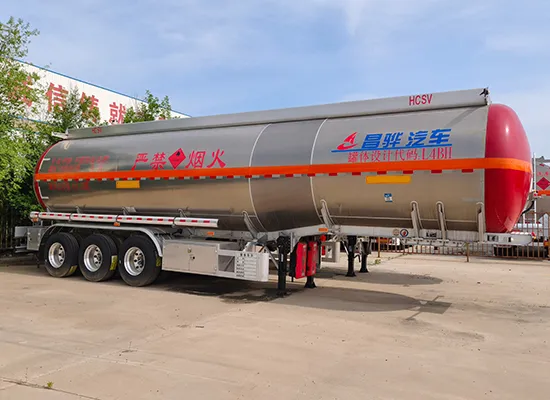

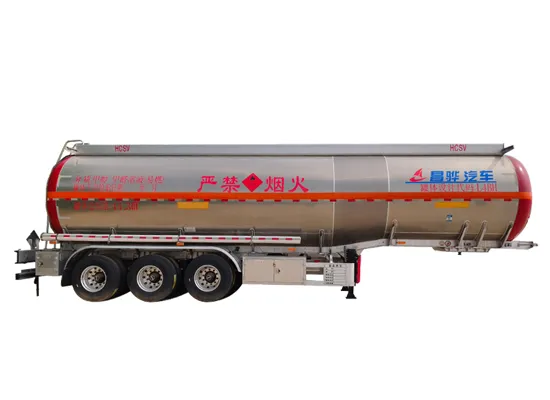

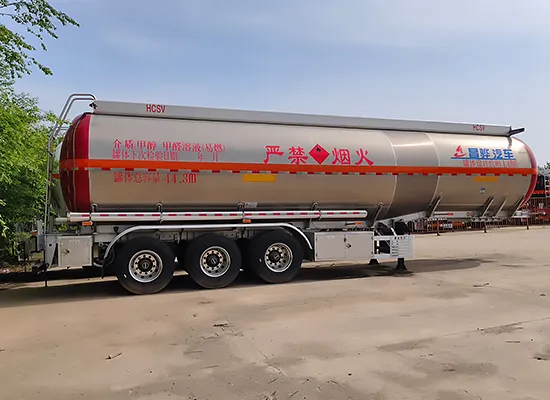

Aluminum Alloy Flammable Liquid Formaldehyde Transport Semi-Trailer

This 3-axle aluminum alloy tanker is specially designed for transporting formaldehyde solution, methanol, ethanol and other flammable liquids with a density up to 820kg/m³ . Its ultra-lightweight construction delivers an impressive payload capacity of up to 33,995kg, maximizing transport efficiency . Equipped with a leak-proof tank design, it ensures safe and reliable chemical transportation while reducing operational costs.

Get A Quote

Aluminum Alloy Flammable Liquid Formaldehyde Transport Semi-Trailer Technical Parameter

Tank trailer information
2King pin50#,90#
3Tank volume(m³)42.27m³(valid volume)
4Overall dimension11800,12050mm*2500mm*3900,3850mm
5Curb weight(kg)6600,6300,6005
6Load capacity(kg)33400,33700,33995


Tank body
6Mediumflammable liquid
7Tank materialaluminium alloy
8Beam materialcarbon steel
8End coverElliptical head
8Tank structureGoose neck type
10Maximum density of the transported medium790kg/m³
11Compartment number1 unit


Running gear
12Number of axles3
13Tire12R22.5 12PR
14wheel base5900+1310+1310
15track rear1840/1840/1840
16Tank body protective materialcarbon steel,aluminium alloy
17suspension systemair suspension



Get in Touch with HCSV for Trailers & Tankers
Get in Touch with HCSV for Trailers & Tankers

Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.

No.999, Haihua South Street, Huanghua City, Cangzhou City, Hebei Province
