Hebei Changhua Star Vehicle Co.,Ltd.

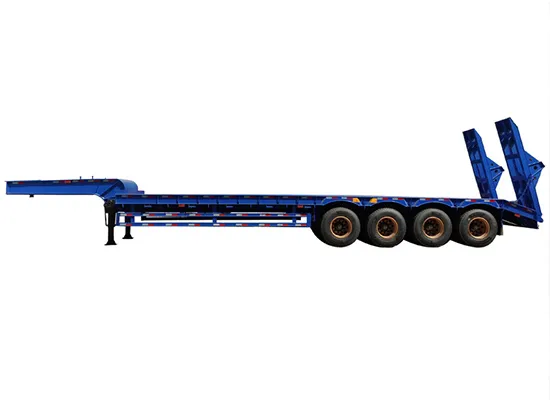

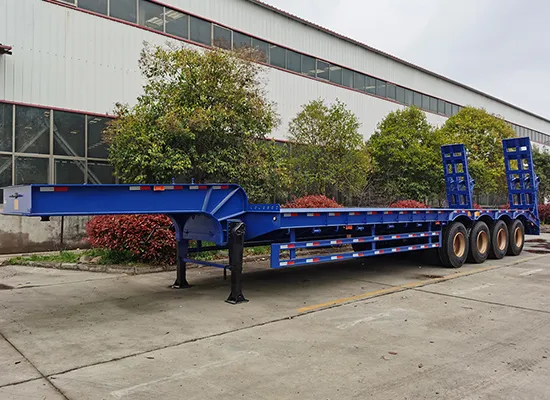

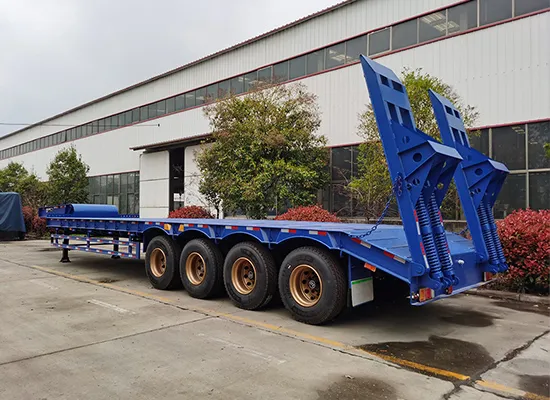

Featuring a gooseneck structure that improves traction and maneuverability, this trailer is ideal for oversized cargo and project logistics. Its reinforced deck offers dependable support while enabling smooth loading of machinery and long goods.
| Dimensional and Structural Specifications | |||
| 1 | External Dimensions (mm) | 13950*2500, 2480, 2550*1700, 1600,1500,1460,1400 | |
| 2 | Wheel Base | 8460+1310+1310, 7860+1310+1310 | |
| 3 | Rated Mass (ton) | 35350, 35770 | |
| Performance and Technical Configuration | |||
| 4 | Axle Brand Option | FUWA BPW | |
| 5 | Single Axle Load Capacity (ton) | 12-16 | |
| 6 | Axle Configuration | 2-3 axles | |
| 7 | Brake System | Air brake with ABS | |
| 8 | Brake Valve Brand | WABCO | |
| 9 | Electrical System | 24V | |
| 10 | Main Beam Material | High strength steel | |
| 11 | Painting System | Primer plus top coat | |
| 12 | Rated Payload (kg) | 40000-68000 | |
| 13 | Suspension Type | Mechanical or air suspension | |
| 14 | Net Weight (kg) | 5800-7200 | |
| 15 | Tire Specification | 12.00R22.5 or 315/80R22.5 | |
| 16 | Welding Standard | CO2 gas shielded welding | |
Strong gooseneck design enhances stability.

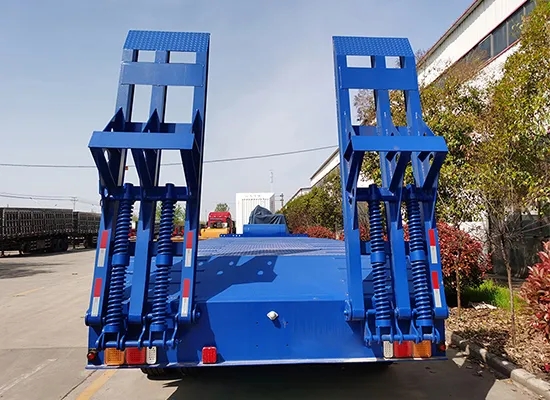

Efficient loading access for equipment.
Suited for heavy and extended cargo.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
