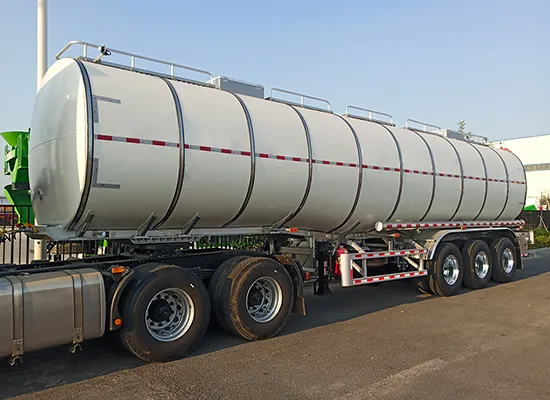

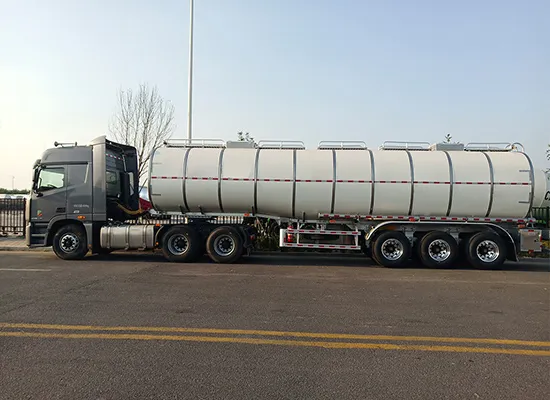

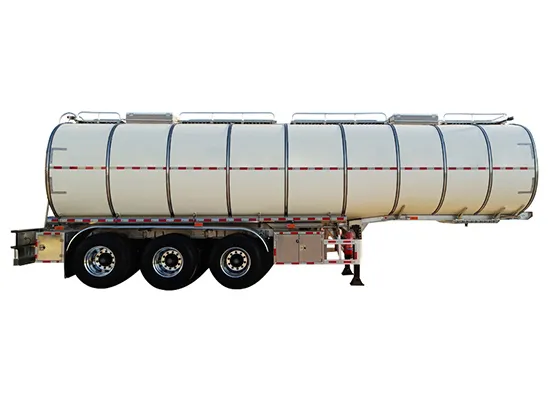

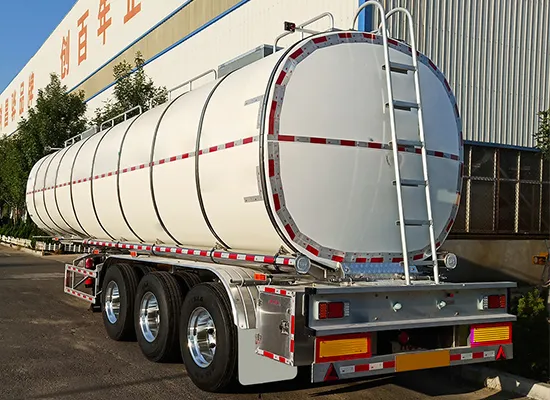

Built to transport crude oil and heavy-grade hydrocarbons, the oil tanker trailer for sale features enhanced wear and corrosion protection. Its reinforced chassis and stable structure ensure safety in demanding conditions. Designed for efficiency, the oil tanker semi trailer supports long-distance and high-volume logistics with lower operating risk.
| Tank trailer information | |||
| 1 | Product model | Export vehicle. | |
| 2 | King pin | 50# 90# | |
| 3 | Tank volume (m³) | 10,000 - 80,000liters (valid volume) | |
| 4 | Tank cross-sectional shape | Square round, Perfect circle | |
| 5 | Tank structure | Straight girder, Gooseneck girder | |
| Tank body | |||
| 6 | Medium | Suitable for transportation of oil | |
| 7 | Tank material | Stainless steel tanker trailer, Aluminium tanker trailer | |
| 8 | Beam material | Stainless steel, Aluminium | |
| 9 | Tank Design thickness | Tank body | 3.2mm-8mm |
| End cover | 3.5mm-8mm | ||
| Compartment partitions | 3.5mm-8mm | ||
| Baffle | 3.2mm-8mm | ||
| 10 | Compartment number | 1-10 units | |
| 11 | Tank storage distribution | Interconnected compartments (evenly divided or as specified) | |
| 12 | Discharging valve form | Aluminum alloy ball valve, Stainless steel ball valve | |
| 13 | Valve specifications | 3 inches, 4 inches | |
| 14 | Number of discharge valve | 1-10 units | |
| 15 | Discharge position | Bottom of rear end of tank, Left side of midsection of tank,Right side of midsection of tank | |
| 16 | Bottom valve form | Aluminum alloy bottom valve, Stainless Steel bottom valve | |
| 17 | Bottom valve specifications | 4 inches, 6 inches | |
| 18 | Number of bottom valve | 1-10 units | |
| 19 | Manhole cover form | Stainless 50-30 Top 3, bottom 6, hinged opening type Upper foot-operated, lower six-point fixed type For stainless steel vapor recovery systems | |
| 20 | Manhole cover number | 1-10 units | |
| 21 | Thermal insulation type | Non-insulated / Insulated | |
| Running gear | |||
| 22 | Axle | 13T HCSV drum brake, Kormee ABS, long screw automatic slack adjusters FUWA BPW TCOK L1 | |

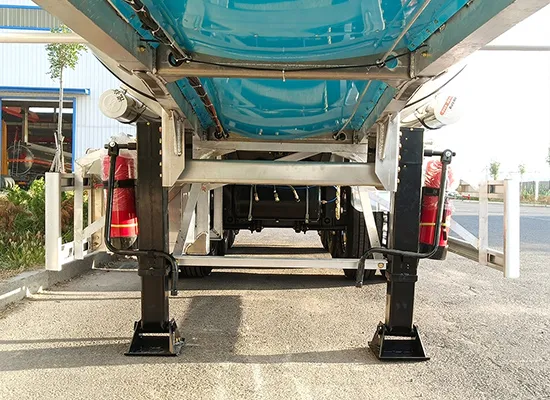

| 23 | Landing gear | 28T, Brand FUWA, JOST | |
| 24 | Tire | 12R22.5, 13R22.5, 65R22.5, 80R22.5, 1200R20 | |
| 25 | Tire number | 6, 8, 12, 16 | |
| 26 | Rim material | Steel, Aluminium | |
| 27 | Rim number | 6, 8, 12, 16 | |
| 28 | Suspension | 13mm*90mm*10pcs 16mm*90mm*10pcs | |
1. Iron \Aluminum secondary beams + iron accessories (tool box , guardrail, ladder, anti-slip walkway, bumper, lampshade, rear mudguard), aluminum alloy folding handrails without handles, rubber hose box ;valve box 2. Two sets of 8KG fire extinguisher and boxes. 3. Two discharge hoses 4. One set of anti-static grounding tape,one spare frame, one spare tire handle, two leg handles, reducer joint and other factory-standard essential accessories; 5. Paste the reflective strips and reflective tapes * Customization available for special requirements | |||
Anti-corrosion and heavy-duty tank protection.
Multi-layer safety system preventing leakage.
Suitable for harsh road environments.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
