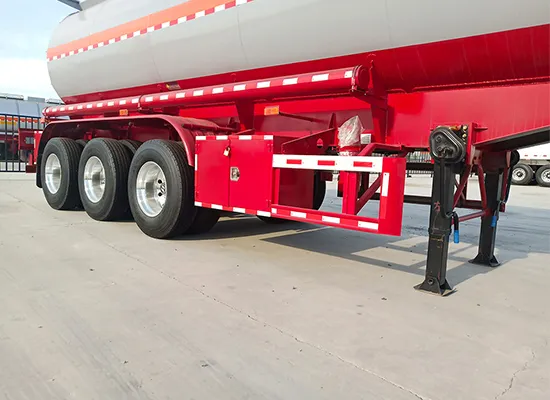

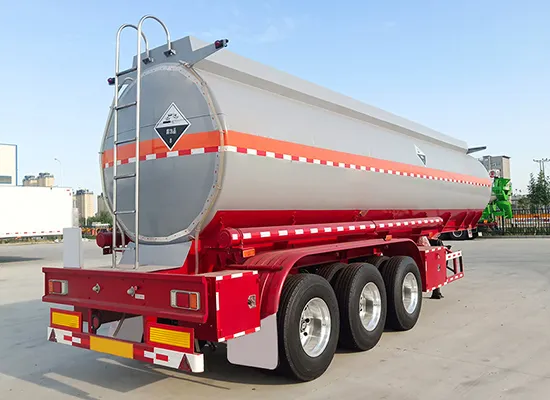

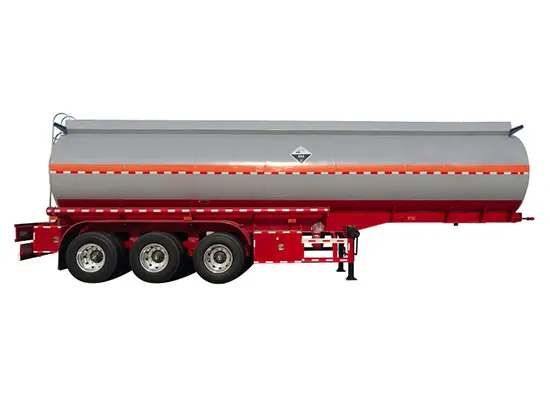

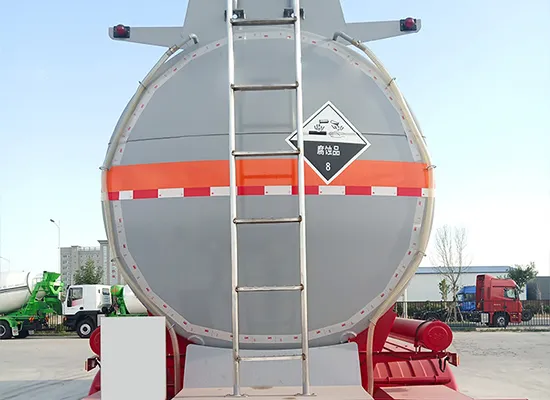

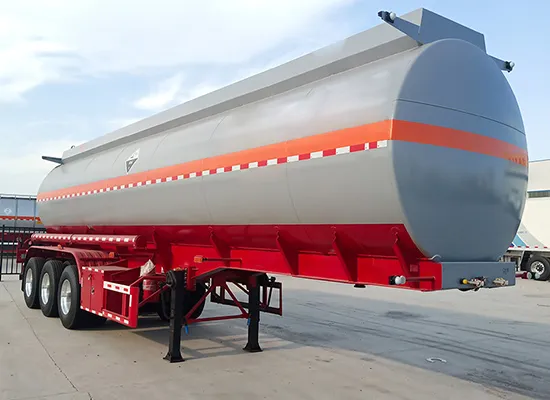

HCSV stainless steel tanker trailers for sale are engineered for premium food-grade and chemical liquid transportation, delivering exceptional hygiene, corrosion resistance, and product purity. Manufactured with high-quality stainless steel and precision welding, they ensure leak-proof performance and easy cleaning for strict sanitary requirements. The lightweight yet robust structure increases payload efficiency, while safety systems safeguard loading and unloading operations. Designed to meet global regulatory standards, the stainless tank trailer provides a reliable, long-lasting solution for high-value liquid logistics across demanding routes.
| Tank trailer information | |||
| 1 | Product model | Export vehicle | |
| 2 | King pin | 50# 90# | |
| 3 | Tank volume (m³) | 10,000 - 80,000liters (valid volume) | |
| 4 | Tank cross-sectional shape | Square round, Perfect circle | |
| 5 | Tank structure | Straight girder, Gooseneck girder | |
| Tank body | |||
| 6 | Medium | Suitable for transportation of food-grade, pharmaceutical, chemical, petroleum, corrosive, flammable and other special liquid media. | |
| 7 | Tank material | S30408, S30458, S304L, S316L | |
| 8 | Beam material | Q355B | |
| 9 | Tank Design thickness | Tank body | 3.2mm-8mm |
| End cover | 3.5mm-8mm | ||
| Baffle | 3.2mm-8mm | ||
| 10 | Compartment number | 1-10 units | |
| 11 | Compartment storage distribution | Interconnected compartments (evenly divided or as specified) | |
| 12 | Discharging valve form | Stainless steel ball valve, Stainless steel API valve | |
| 13 | Valve specifications | 3 inches, 4 inches | |
| 14 | Number of Discharge outlets | 1-10 units | |
| 15 | Discharge position | Bottom of rear end of tank, Left side of midsection of tank, Right side of midsection of tank | |
| 16 | Bottom valve form | Stainless steel pneumatic mariner valve | |
| 17 | Bottom valve specifications | 4 inches, 6 inches | |
| 18 | Number of bottom valve | 1-10 units | |
| 19 | Manhole cover form | Stainless 50-30 Top 3, bottom 6, hinged opening type Upper foot-operated, lower six-point fixed type For stainless steel vapor recovery systems | |
| 20 | Manhole cover number | 1-10 units | |
| 21 | Thermal insulation type | Non-insulated / Insulated | |
| Running gear | |||
| 22 | Axle | 13T HCSV drum brake, Kormee ABS, long screw automatic slack adjusters FUWA BPW TCOK L1 | |
| 23 | Landing gear | 28T, Brand FUWA, JOST | |
| 24 | Tire | 12R22.5, 13R22.5, 65R22.5, 80R22.5, 1200R20 | |
| 25 | Tire number | 6, 8, 12, 16 | |
| 26 | Rim material | Steel, Aluminium | |
| 27 | Rim number | 6, 8, 12, 16 | |
| 28 | Suspension | 13mm*90mm*10pcs 16mm*90mm*10pcs | |
Optional food-grade stainless steel for superior hygiene and long-term corrosion resistance in demanding liquid transport operations.
Precision-welded tank with reinforced structure ensures leak-proof performance and stability across long-distance and multi-terrain routes.
Smooth interior finish and CIP-friendly design simplify sanitation processes and maintain product purity during repeated loading cycles.
Optimized lightweight construction increases payload efficiency while maintaining strict compliance with global safety and logistics standards.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
