Hebei Changhua Star Vehicle Co.,Ltd.

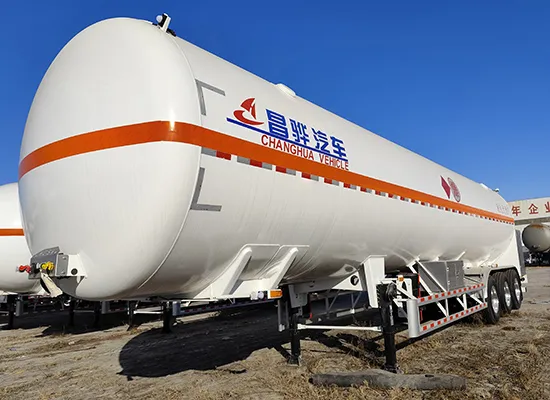

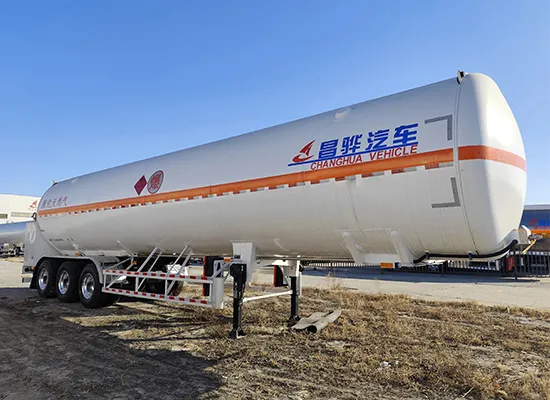

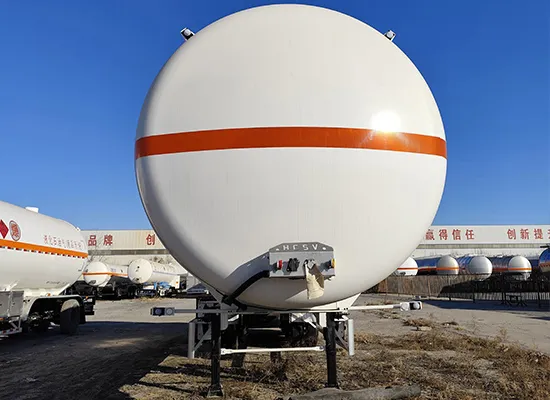

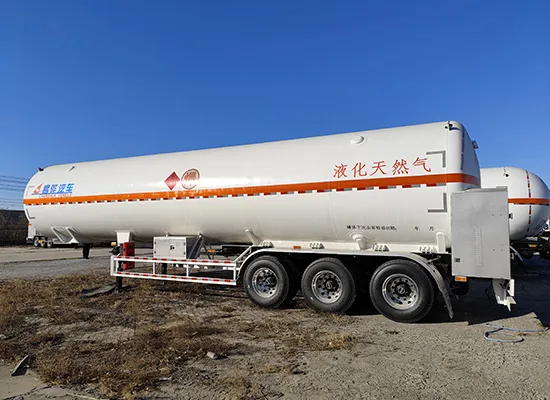

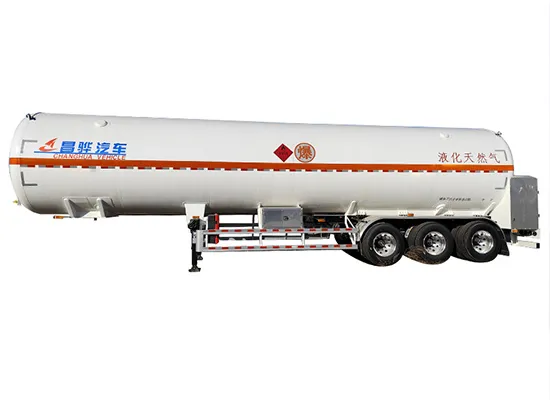

The LNG Trailer is designed for clean-energy transportation, using high-vacuum insulation to maintain ultra-low-temperature LNG conditions. Its reliable sealing system minimizes evaporation and improves cost efficiency. Built for both domestic and long-distance distribution networks.
| LNG Tank trailer information | ||
| 1 | Product model | Export vehicle |
| 2 | Tank capacity | 10,000 - 80,000liters (valid volume) |
| 3 | Name | LNG transport semi-trailer |
| 4 | Medium | LNG |
| Running gear | ||
| 5 | Axle | 13T HCSV drum brake, Kormee ABS, long screw automatic slack adjusters FUWA BPW TCOK L1 |
| 6 | Axle number | 2,3,4 |
| 7 | King pin | 50# 90# |
| 8 | Landing gear | 28T,Brand FUWA，JOST |
| 9 | Tire | 12R22.5,13R22.5,65R22.5,80R22.5,1200R20 |
| 10 | Tire number | 6,8,12,16 |
| 11 | Rim material | Steel，Aluminium |
| 12 | Rim number | 6,8,12,16 |
| 13 | Leaf spring | 13mm*90mm*10pcs 16mm*90mm*10pcs |
| Other equipment | ||
| The entire vehicle is white. There is a fire extinguisher box containing two fire extinguishers. All accompanying accessories are included. *Customization available for special requirements |
Ultra-low-temperature preservation technology.
Low evaporation rate for reduced product loss.
Comprehensive valve safety system.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
