Hebei Changhua Star Vehicle Co.,Ltd.

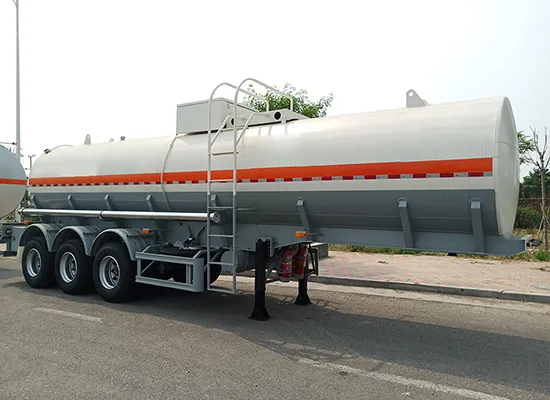

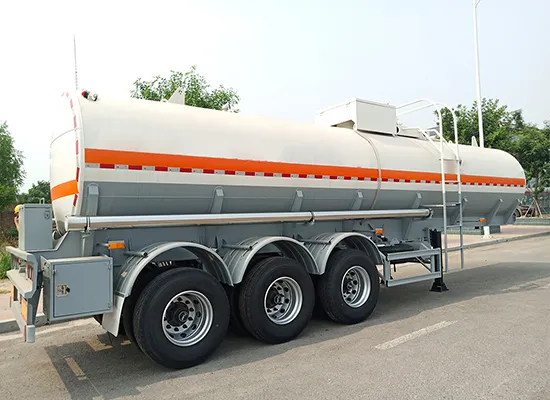

Made for hazardous chemicals including acids, alkalis, and flammable liquids, the chemical tanker trailer utilizes special linings and superior sealing technology. It complies with global chemical transportation standards, delivering dependable protection for high-risk materials. Easy-clean interior design supports fast tank transition and maintenance.
| Tank trailer information | |||
| 1 | Product model | Export vehicle. | |
| 2 | King pin | 50# 90# | |
| 3 | Tank volume (m³) | 10,000 - 80,000liters (valid volume) | |
| 4 | Tank cross-sectional shape | Square round, Perfect circle | |
| 5 | Tank structure | Straight girder, Gooseneck girder | |
| Tank body | |||
| 6 | Medium | Suitable for transportation of chemical (including acids, alkalis, etc.) | |
| 7 | Tank material | Stainless steel tanker trailer, Carbon steel tanker trailer | |
| 8 | Beam material | Stainless steel, Carbon steel | |
| 9 | Tank Design thickness | Tank body | 4mm-8mm |
| End cover | 4mm-8mm | ||
| Compartment partitions | 4mm-8mm | ||
| Baffle | 4mm-8mm | ||
| 10 | Compartment number | 1-10 units | |
| 11 | Tank storage distribution | Interconnected compartments (evenly divided or as specified) | |
| 12 | Discharging valve form | Stainless steel ball valve | |
| 13 | Valve specifications | 3 inches,4 inches | |
| 14 | Number of discharge valve | 1-10 units | |
| 15 | Discharge position | Bottom of rear end of tank, Left side of midsection of tank, Right side of midsection of tank | |
| 16 | Bottom valve form | Stainless steel bottom valve | |
| 17 | Bottom valve specifications | 4 inches, 6 inches | |
| 18 | Number of bottom valve | 1-10 units | |
| 19 | Manhole cover form | Stainless 50-30 Top 3, bottom 6, hinged opening type Upper foot-operated, lower six-point fixed type | |
| 20 | Manhole cover number | 1-10 units | |
| 21 | Thermal insulation type | Non-insulated / Insulated | |
| Running gear | |||
| 22 | Axle | 13T HCSV drum brake, Kormee ABS, long screw automatic slack adjusters FUWA BPW TCOK L1 | |
| 23 | Landing gear | 28T, Brand FUWA, JOST | |
| 24 | Tire | 12R22.5, 13R22.5, 65R22.5, 80R22.5, 1200R20 | |
| 25 | Tire number | 6, 8, 12, 16 | |
| 26 | Rim material | Steel, Aluminium | |
| 27 | Rim number | 6, 8, 12, 16 | |
| 28 | Suspension | 13mm*90mm*10pcs 16mm*90mm*10pcs | |
| 1. Iron accessories (toolbox, guardrail, ladder, bumper, lampshade, rear mudguard), stainless steel hose box. 2. Plastic valve box. Aluminum alloy movable guardrail on the tank top. Stainless steel anti-slip net. 2 sets of 8KG Fire extinguisher and boxes. 3. Two discharge hoses. 4. 1set of anti-static grounding tape. 1 spare frame, 1 spare tire handle, 2 leg handles, reducer joint, shaft sleeve and other factory-standard essential accessories. 5. The entire vehicle is equipped with reflective strips and reflective bands. * Customization available for special requirements | |||
Optional corrosion-resistant linings for various chemicals.
Anti-explosion safety structure.
Fully compliant with hazardous material regulations.

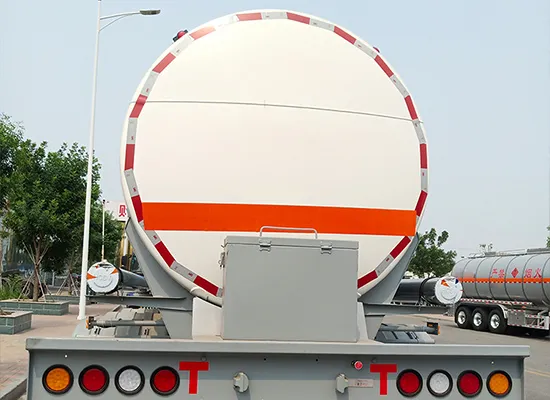

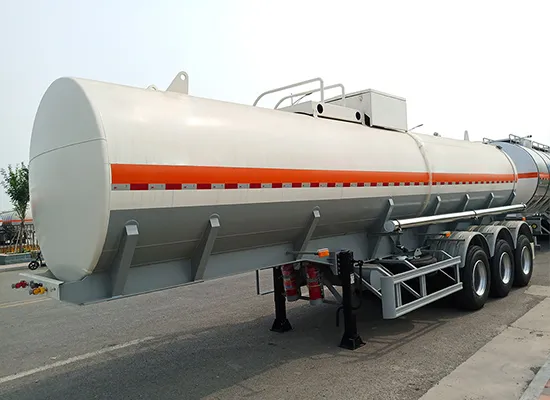

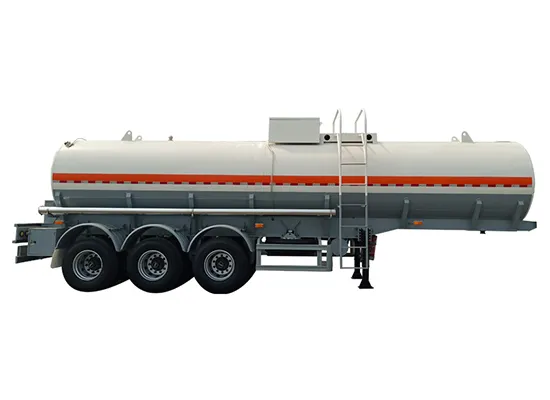

An acid tanker trailer is a highly specialized semi-trailer designed for the safe, bulk transportation of hazardous and highly corrosive liquid chemicals. Unlike standard tankers, the acid tanker trailers for sale engineered with advanced corrosion-resistant materials to withstand the aggressive chemical properties of substances like sulfuric acid, hydrochloric acid, nitric acid, and phosphoric acid.
They are widely used in chemical manufacturing, mining, water treatment, and industrial waste management industries.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
