Hebei Changhua Star Vehicle Co.,Ltd.

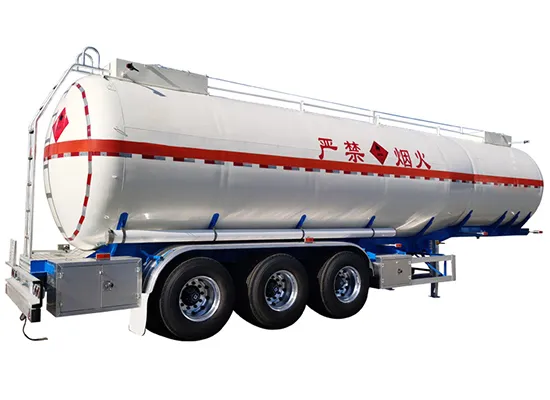

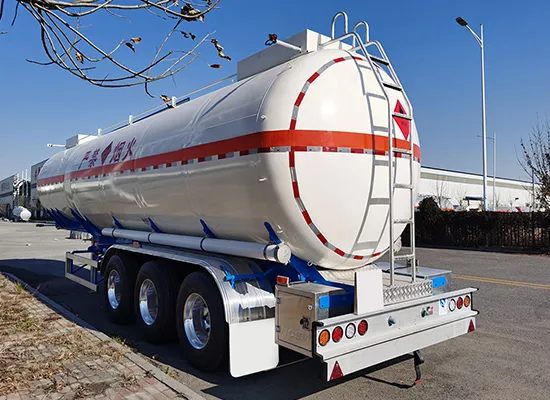

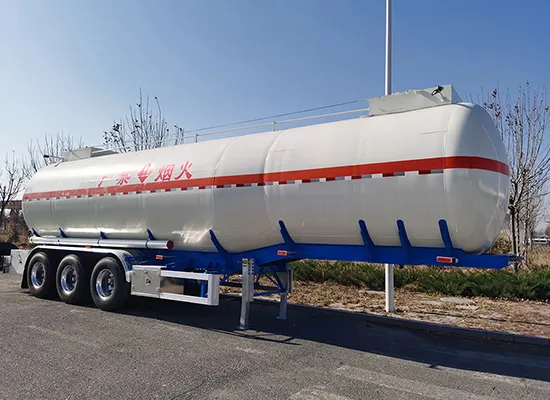

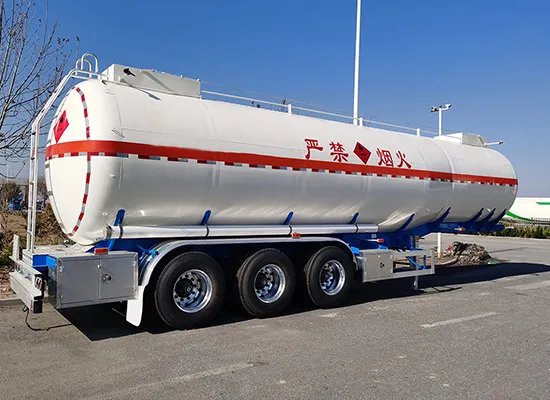

This carbon steel fuel tanker trailer is built to handle high-strength working conditions, especially for fuel and chemical transport. Its durable carbon-steel structure withstands demanding road environments and ensures reliable long-distance operations. Advanced welding and protective coatings reinforce safety and service longevity. Ideal for operators seeking robust performance with competitive investment.
| Tank trailer information | |||
| 1 | Product model | Export vehicle. | |
| 2 | King pin | 50# 90# | |
| 3 | Tank volume(m³) | 10,000 - 80,000liters (valid volume) | |
| 4 | Tank cross-sectional shape | Square round,Perfect circle | |
| 5 | Tank structure | Straight girder,Gooseneck girder | |
| Tank body | |||
| 6 | Medium | Suitable for transportation of pharmaceutical, chemical, petroleum, corrosive, flammable, toxic and other special liquid media. | |
| 7 | Tank material | Q235B, Q355B, Q345R | |
| 8 | Beam material | Q355B | |
| 9 | Tank Design thickness | Tank body | 4mm-8mm |
| End cover | 4mm-8mm | ||
| Compartment partitions | 4mm-8mm | ||
| Baffle | 4mm-8mm | ||
| 10 | Compartment number | 1-10 units | |
| 11 | Tank storage distribution | Interconnected compartments (evenly divided or as specified) | |
| 12 | Discharging valve form | Stainless steel ball valve, Stainless steel API valve, Aluminum alloy ball valve and Aluminum alloy API valve | |
| 13 | Valve specifications | 3 inches,4 inches | |
| 14 | Number of discharge valve | 1-10 units | |
| 15 | Discharge position | Bottom of rear end of tank,Left side of midsection of tank,Right side of midsection of tank | |
| 16 | Bottom valve form | Aluminum alloy bottom valve, Stainless steel bottom valve | |
| 17 | Bottom valve specifications | 4 inches,6 inches | |
| 18 | Number of bottom valve | 1-10 units | |
| 19 | Manhole cover form | Aluminum alloy oil vapor recovery special-purpose product | |
| 20 | Manhole cover number | 1-10 units | |
| 21 | Thermal insulation type | Non-insulated / Insulated | |
| Running gear | |||

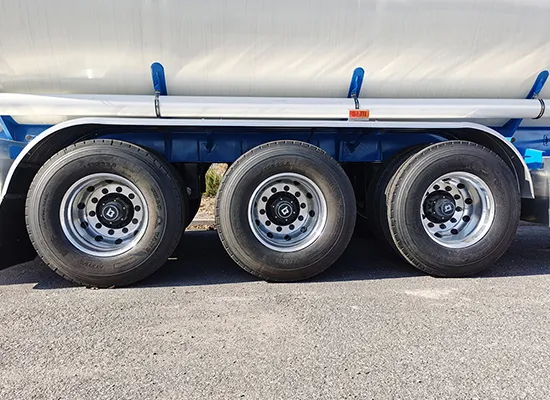

| 22 | Axle | 13T HCSV drum brake, Kormee ABS, long screw automatic slack adjusters FUWA BPW TCOK L1 | |
| 23 | Landing gear | 28T,Brand FUWA，JOST | |
| 24 | Tire | 12R22.5,13R22.5,65R22.5,80R22.5,1200R20 | |
| 25 | Tire number | 6,8,12,16 | |
| 26 | Rim material | Steel，Aluminium | |
| 27 | Rim number | 6，8，12，16 | |
| 28 | Suspension | 13mm*90mm*10pcs 16mm*90mm*10pcs | |
1.Iron secondary beams + iron accessories (tool box , guardrail, ladder, anti-slip walkway, bumper, lampshade, rear mudguard), aluminum alloy folding handrails without handles, rubber hose box made of stainless steel; Aluminum alloy valve box 2.Two sets of 8KG fire extinguisher and boxes. 3.Two discharge hoses 4.One set of anti-static grounding tape,one spare frame, one spare tire handle, two leg handles, reducer joint and other factory-standard essential accessories; 5.The entire vehicle is white. 6.Paste the reflective strips and reflective tapes *Customization available for special requirements | |||
Heavy-duty frame and tank for tough applications.
Flexible multi-compartment configuration.
Enhanced leak-proof and safety valve system.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
