Hebei Changhua Star Vehicle Co.,Ltd.

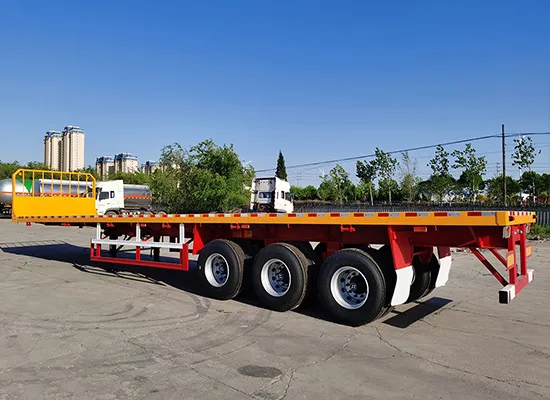

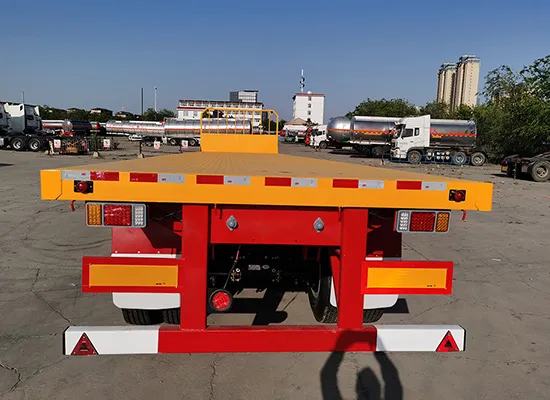

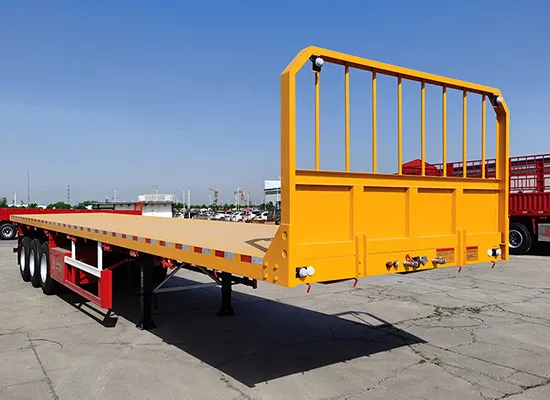

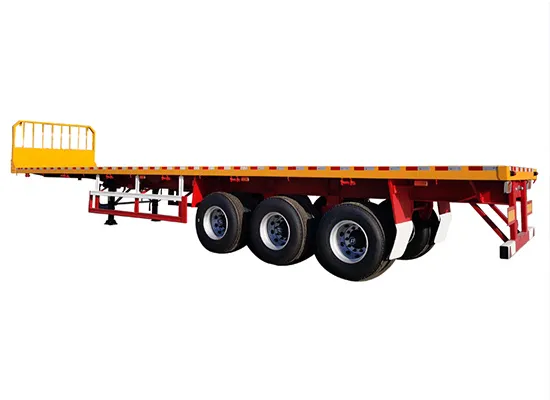

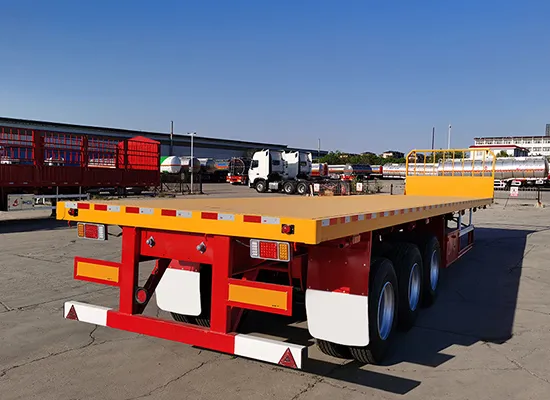

The Flatbed Tractor Trailer offers maximum versatility for steel, timber, containers, and palletized cargo. The open platform enhances loading speed and compatibility with different lashing devices. High-strength materials provide dependable performance for daily logistics.
| Dimensional and Structural Specifications | |||
| 1 | External Dimensions (mm) | 13000*2500, 2550*2900, 2700, 1560 | |
| 2 | Wheel Base | 6830+1310+1310, 6630+1310+1310 | |
| 3 | Rated Mass (ton) | 33500, 33000 | |
| Performance and Technical Configuration | |||
| 4 | Axle Brand Option | FUWA BPW | |
| 5 | Single Axle Load Capacity (ton) | 13-16 | |
| 6 | Axle Configuration | 3-4 axles | |
| 7 | Brake System | Air brake with ABS | |
| 8 | Brake Valve Brand | WABCO | |
| 9 | Electrical System | 24V | |
| 10 | Main Beam Material | Structural steel | |
| 11 | Painting System | Primer plus top coat | |
| 12 | Rated Payload (kg) | 30000-60000 | |
| 13 | Suspension Type | Mechanical or air suspension | |
| 14 | Net Weight (kg) | 5500-8000 | |
| 15 | Tire Specification | 12.00R22.5 or 315/80R22.5 | |
| 16 | Welding Standard | CO2 gas shielded welding | |
Universal open-deck transport.
Reinforced steel frame for demanding use.
Various securing points for stable cargo handling.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
