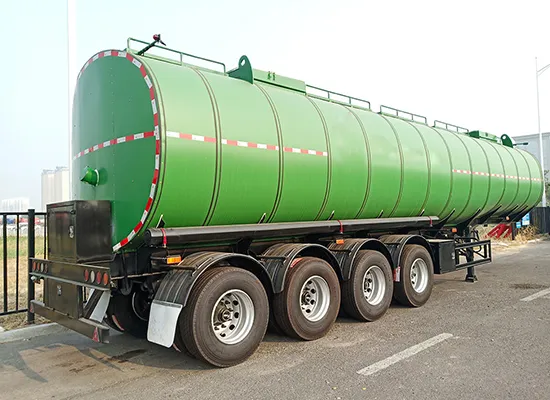

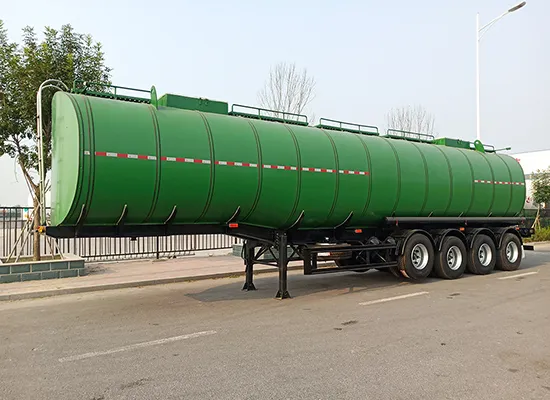

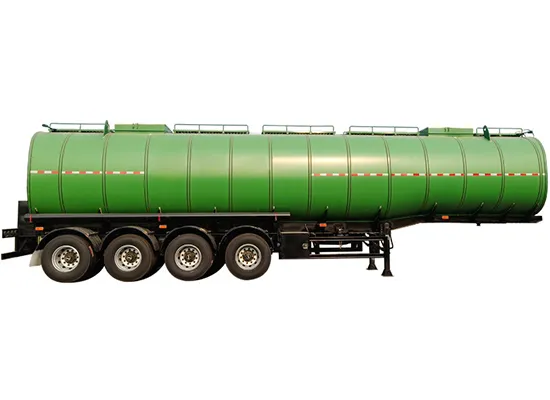

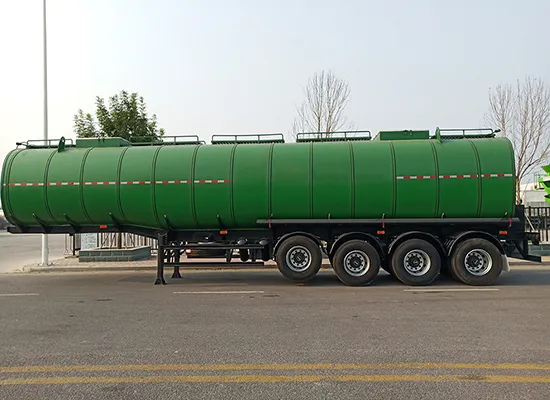

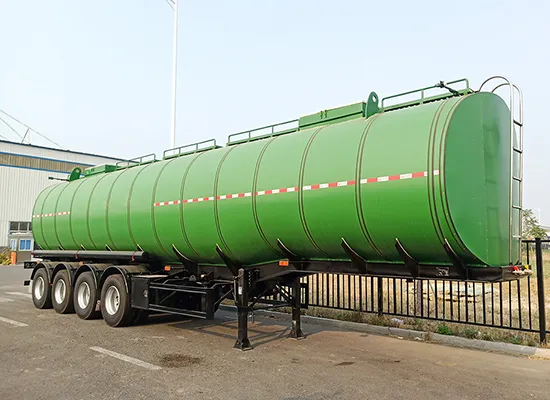

The asphalt tank trailer is tailored for temperature-sensitive bitumen, featuring exceptional thermal insulation and optional heating systems. The asphalt tanker for sale maintains asphalt flowability over long distances, ensuring consistent project supply. Rugged construction supports roadwork operations under tough conditions.
| Tank trailer information | |||
| 1 | Product model | Export vehicle. | |
| 2 | King pin | 50# 90# | |
| 3 | Tank volume (m³) | 10,000 - 80,000liters (valid volume) | |
| 4 | Tank cross-sectional shape | Square round, Perfect circle | |
| 5 | Tank structure | Straight girder, Gooseneck girder | |
| Tank body | |||
| 6 | Medium | Suitable for transportation of asphalt | |
| 7 | Tank material | Carbon Steel | |
| 8 | Beam material | Carbon Steel | |
| 9 | Tank Design thickness | Tank body | 5mm-8mm |
| End cover | 5mm-8mm | ||
| Compartment partitions | 5mm-8mm | ||
| Baffle | 5mm-8mm | ||
| 10 | Compartment number | 1 unit | |
| 11 | Tank storage distribution | Single-compartment | |
| 12 | Discharging valve form | High-temperature resistant butterfly valve | |
| 13 | Valve specifications | 6 inches, 8 inches | |
| 14 | Number of discharge valve | 1 unit | |
| 15 | Discharge position | Rear section of the tank | |
| 16 | Manhole cover form | Stainless 50-30 Top 3, bottom 6, hinged opening type Upper foot-operated, lower six-point fixed type | |
| 17 | Manhole cover number | 2 units | |
| 18 | Thermal insulation type | Insulated | |
| Running gear | |||
| 19 | Axle | 13T HCSV drum brake, Kormee ABS, long screw automatic slack adjusters FUWA BPW TCOK L1 | |
| 20 | Landing gear | 28T, Brand FUWA, JOST | |
| 21 | Tire | 12R22.5, 13R22.5, 65R22.5, 80R22.5, 1200R20 | |
| 22 | Tire number | 6, 8, 12, 16 | |
| 23 | Rim material | Steel, Aluminium | |
| 24 | Rim number | 6, 8, 12, 16 | |
| 25 | Suspension | 13mm*90mm*10pcs 16mm*90mm*10pcs | |
| 1. Iron secondary beams and iron accessories ( tool box (double-door), guardrail, ladder, anti-slip walkway, bumper, lampshade,rear mudguard); aluminum alloy folding handrail without handles; rubber hose box in stainless steel. The insulation material for the end cover be the same as that for the tank body insulation panels. 2. Two sets of 8KG fire extinguisher and boxes. 3. Two discharge hoses. 4. One set of anti-static grounding tape,one spare frame, one spare tire handle, two leg handles, reducer joint and other factory-standard essential accessories. 5. Paste the reflective strips and reflective tapes. * Customization available for special requirements | |||
Excellent heat-retention structure.
Optional diesel burner heating system.
Optimized piping for high-viscosity materials.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
