The cement tank trailer for sale improves delivery efficiency for cement, fly ash, and powder materials. Its pneumatic discharge system offers high off-loading speed and extremely low residue rate. Rigid structure and lightweight balance enhance the stability of cement tanker on long hauls and uneven roads.
| Tank trailer information | |||
| 1 | Product model | Export vehicle. | |
| 2 | King pin | 50# 90# | |
| 3 | Tank volume (m³) | 10,000 - 80,000liters (valid volume) | |
| 4 | Tank cross-sectional shape | Square round, Perfect circle | |
| 5 | Tank structure | Straight girder, Gooseneck girder | |
| Tank body | |||
| 6 | Medium | Suitable for transportation of cement | |
| 7 | Tank material | Aluminium tanker trailer, Carbon steel tanker trailer | |
| 8 | Beam material | Aluminium, Carbon steel | |
| 9 | Tank Design thickness | Tank body | 3.2mm-8mm |
| End cover | 3.5mm-8mm | ||
| Compartment partitions | 3.5mm-8mm | ||
| Baffle | 3.2mm-8mm | ||
| 10 | Compartment number | 1 unit | |
| 11 | Tank storage distribution | Single-compartment | |
| 12 | Discharging valve form | Butterfly valve | |
| 13 | Valve specifications | 3 inches, 4 inches | |
| 14 | Number of discharge valve | 1 unit | |
| 15 | Discharge position | Rear section of the tank | |

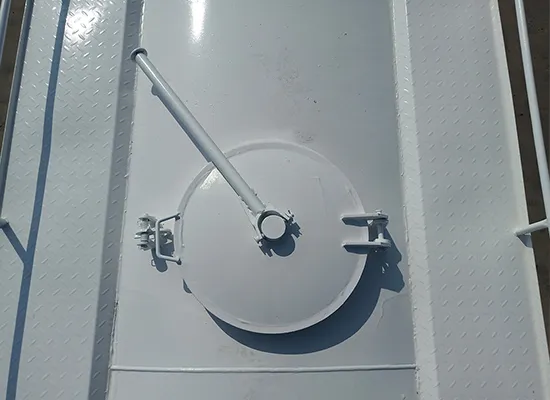

| 16 | Manhole cover form | Stainless 50-30 Top 3, bottom 6, hinged opening type Upper foot-operated, lower six-point fixed type For stainless steel vapor recovery systems | |
| 17 | Manhole cover number | 1-10 units | |
| Running gear | |||
| 18 | Axle | 13T HCSV drum brake, Kormee ABS, long screw automatic slack adjusters FUWA BPW TCOK L1 | |
| 19 | Landing gear | 28T, Brand FUWA, JOST | |
| 20 | Tire | 12R22.5, 13R22.5, 65R22.5, 80R22.5, 1200R20 | |
| 21 | Tire number | 6, 8, 12, 16 | |
| 22 | Rim material | Steel, Aluminium | |
| 23 | Rim number | 6, 8, 12, 16 | |
| 24 | Suspension | 13mm*90mm*10pcs 16mm*90mm*10pcs | |

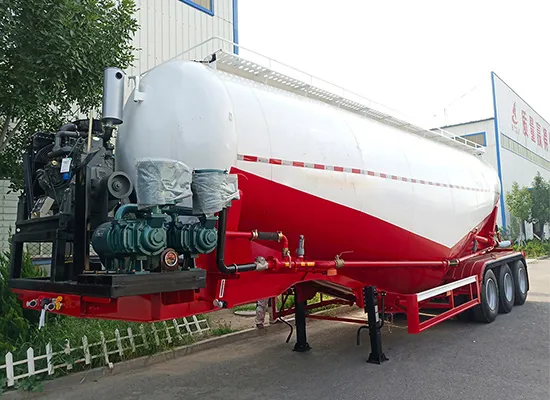

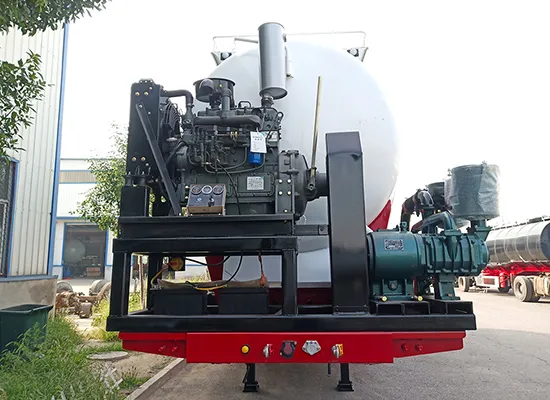

1. The toolbox, guardrails, and mudguards are made of aluminum alloy. 2. Short frame. Power take-off from the front. Can be equipped with an air compressor or diesel engine. * Customization available for special requirements | |||
High-efficiency pneumatic unloading system.
Strong and fatigue-resistant tank design.
Larger carrying capacity with reduced fuel usage.

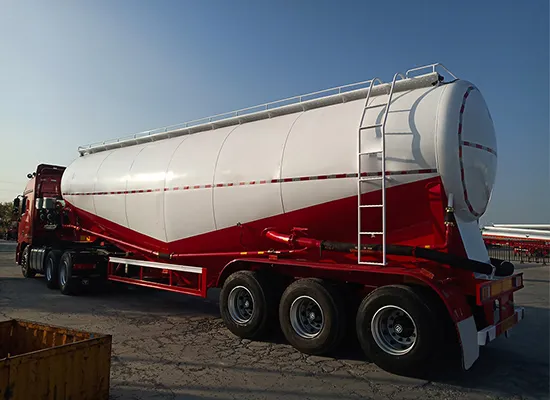

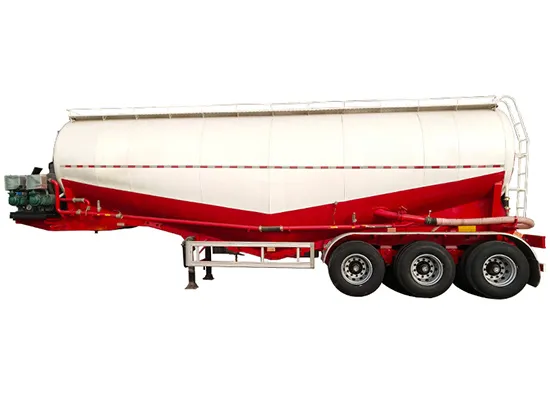

A dry bulk cement tanker trailer (or pneumatic cement trailer) is a specialized vehicle designed for the transport of large quantities of dry, powdered materials. These tankers use a sophisticated pneumatic discharge system to unload materials directly into storage silos, significantly reducing labor costs and preventing moisture contamination.
The dry cement trailer is an essential tool for large-scale construction projects, cement plants, concrete batching plants, and mining operations where bulk powder logistics are required.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
