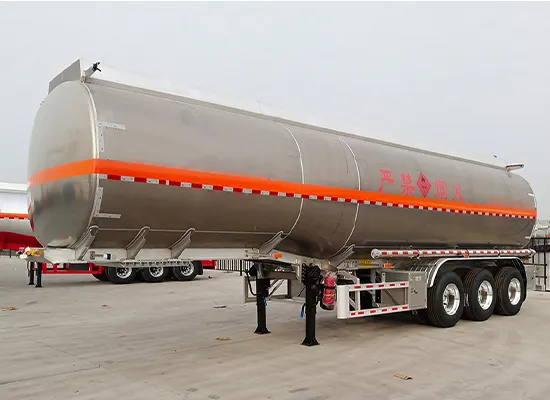

The aluminum tanker for sale is engineered for high-efficiency liquid transportation, especially for fuel, edible oils, and other corrosion-sensitive cargo. Its lightweight aluminum construction increases effective payload while reducing fuel consumption. Precision welding and anti-corrosion properties significantly extend service life. A polished, seamless tank body ensures hygiene, durability, and enhanced brand image on the road, making the aluminum tanker trailers for sale a cost-effective and premium choice for modern fleets.
| Tank trailer information | |||
| 1 | Product model | Export vehicle. | |
| 2 | King pin form | 50# 90# | |
| 3 | Tank volume (m³) | 10,000 - 80,000liters (valid volume) | |

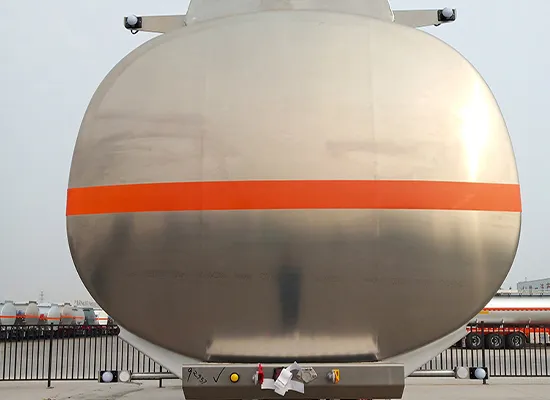

| 4 | Tank cross-sectional shape | Square round, Perfect circle | |
| 5 | Tank structure | Straight girder, Gooseneck girder | |
| Tank body | |||
| 6 | Medium | Suitable for transportation of flammable, food-grade, pharmaceutical, chemical, petroleum, and other special liquid media. | |
| 7 | Tank material | 5182, 5454 | |
| 8 | Beam material | Q355B | |
| 9 | Tank Design thickness | Tank body | 5.5mm-8mm |
| End cover | 5.5mm-8mm | ||
| Compartment partitions | 5.5mm-8mm | ||
| Baffle | 5.5mm-8mm | ||
| 10 | Compartment number | 1-10 units | |
| 11 | Tank storage distribution | Interconnected compartments (evenly divided or as specified) | |
| 12 | Discharging valve form | Stainless steel ball valve, Stainless steel API valve, Aluminum alloy ball valve and Aluminum alloy API valve | |
| 13 | Valve specifications | 3 inches,4 inches | |
| 14 | Number of discharge valve | 1-10 units | |
| 15 | Discharge position | Bottom of rear end of tank, Left side of midsection of tank, Right side of midsection of tank | |
| 16 | Bottom valve form | Aluminum alloy bottom valve | |
| 17 | Bottom valve specifications | 4 inches | |
| 18 | Number of bottom valve | 1-10 units | |
| 19 | Manhole cover form | Aluminum alloy oil vapor recovery special-purpose product | |
| 20 | Manhole cover number | 1-10 units | |
| 21 | Thermal insulation type | Non-insulated / Insulated | |
| Running gear | |||
| 22 | Axle | 13T HCSV drum brake, Kormee ABS, long screw automatic slack adjusters FUWA BPW TCOK L1 | |
| 23 | Landing gear | 28T,Brand FUWA, JOST | |
| 24 | Tire | 12R22.5, 13R22.5, 65R22.5, 80R22.5, 1200R20 | |
| 25 | Tire number | 6, 8, 12, 16 | |
| 26 | Rim material | Steel, Aluminium | |
| 27 | Rim number | 6, 8, 12, 16 | |
| 28 | Suspension | 13mm*90mm*10pcs 16mm*90mm*10pcs | |
Aluminum accessories (Valve box , toolbox , guardrail, ladder, anti-slip walkway, bumper, folding handrail without handle, lampshade, rear mudguard), Rubber hose box made of stainless steel; Two sets of 8KG fire extinguisher and boxes. Two discharge hoses. One set of anti-static grounding tape,one spare frame, one spare tire handle, two leg handles, reducer joint, shaft sleeve and other factory-standard essential accessories; Paste the reflective strips and reflective tapes. *Customization available for special requirements | |||
Lightweight design for increased payload capacity.
Excellent corrosion resistance and long service life.
High-quality seamless structure ensures maximum safety.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
