Hebei Changhua Star Vehicle Co.,Ltd.

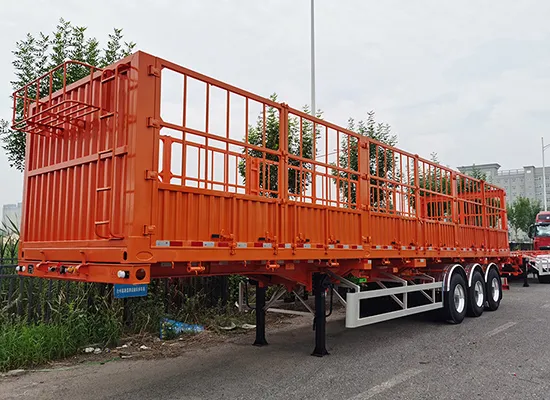

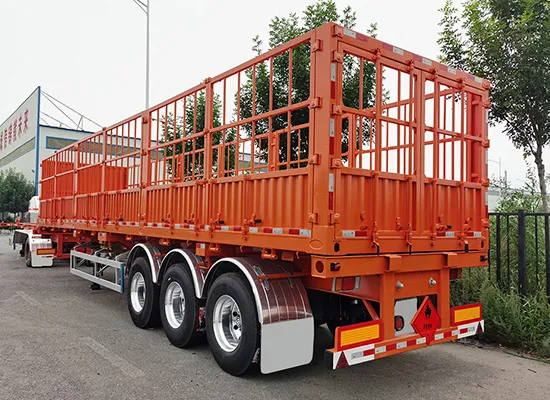

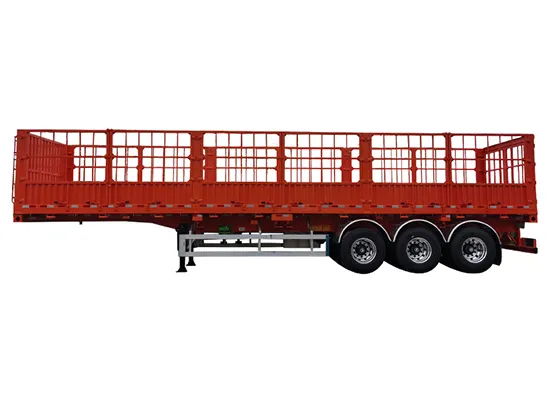

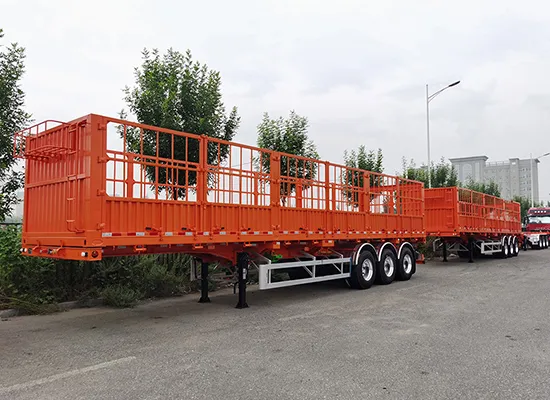

Designed for agricultural and lightweight cargo, the Fence Trailer features breathable and protective side panels. Its removable structure enhances cargo handling flexibility. Reliable chassis design ensures excellent payload performance with reduced empty weight.
| Dimensional and Structural Specifications | |||
| 1 | External Dimensions (mm) | 9500, 9000*2450*3520, 3420, 3320, 3220,3120 | |
| 2 | Container Dimensions (mm) | 9385, 8885*2350*600 | |
| 3 | Wheel Base | 4180+1310+1310 | |
| 4 | Rated Mass (ton) | 34500, 34200, 34700 | |
| Performance and Technical Configuration | |||
| 5 | Axle Brand Option | FUWA BPW | |
| 6 | Single Axle Load Capacity (ton) | 13-16 | |
| 7 | Axle Configuration | 2-3 axles | |
| 8 | Brake System | Air brake | |
| 9 | Brake Valve Brand | WABCO | |
| 10 | Electrical System | 24V | |
| 11 | Main Beam Material | Carbon structural steel | |
| 12 | Painting System | Primer plus top coat | |
| 13 | Rated Payload (kg) | 20000-60000 | |
| 14 | Suspension Type | Mechanical suspension | |
| 15 | Net Weight (kg) | 6000-9000 | |
| 16 | Tire Specification | 12.00R22.5 or 315/80R22.5 | |
| 17 | Welding Standard | CO2 gas shielded welding | |
Ventilated fence panels protect cargo quality.
Optional height and structure configurations.
Lightweight yet strong for higher payloads.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
