Designed specifically for refined fuel logistics, the fuel tanker trailer for sale offers precise loading and unloading control with an optimized pipeline layout. The superior sealing performance of fuel tank and trailer protects fuels from contamination, while anti-static technology ensures complete safety throughout operations. The tanker fuel trailer is a versatile and efficient solution for gas stations and fuel distributors.
| Tank trailer information | |||
| 1 | Product model | Export vehicle. | |
| 2 | King pin | 50# 90# | |
| 3 | Tank volume(m³) | 10,000 - 80,000liters (valid volume) | |
| 4 | Tank cross-sectional shape | Square round, Perfect circle | |
| 5 | Tank structure | Straight girder, Gooseneck girder | |
| Tank body | |||
| 6 | Medium | Suitable for transportation of fuel | |
| 7 | Tank material | Stainless steel tanker trailer, Aluminium tanker trailer, Carbon steel tanker trailer | |
| 8 | Beam material | Stainless steel, Aluminium, Carbon steel | |
| 9 | Tank Design thickness | Tank body | 3.2mm-8mm |
| End cover | 3.5mm-8mm | ||
| Compartment partitions | 3.5mm-8mm | ||
| Baffle | 3.2mm-8mm | ||
| 10 | Compartment number | 1-10 units | |
| 11 | Tank storage distribution | Interconnected compartments (evenly divided or as specified) | |

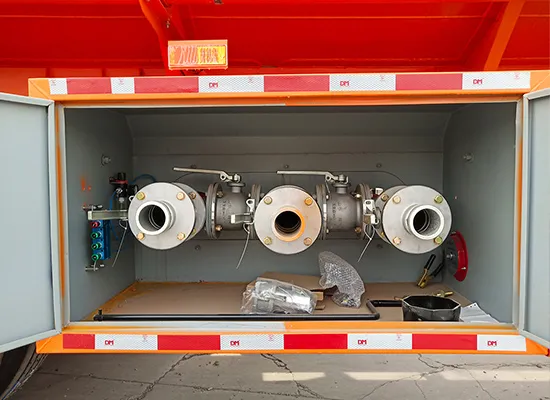

| 12 | Discharging valve form | Stainless steel ball valve, Stainless steel API valve, Aluminum alloy ball valve and Aluminum alloy API valve | |
| 13 | Valve specifications | 3 inches, 4 inches | |
| 14 | Number of discharge valve | 1-10 units | |
| 15 | Discharge position | Bottom of rear end of tank, Left side of midsection of tank, Right side of midsection of tank | |
| 16 | Bottom valve form | Aluminum alloy bottom valve | |
| 17 | Bottom valve specifications | 4 inches | |
| 18 | Number of bottom valve | 1-10 units | |
| 19 | Manhole cover form | Stainless 50-30 Top 3, bottom 6, hinged opening type Upper foot-operated, lower six-point fixed type For stainless steel vapor recovery systems | |
| 20 | Manhole cover number | 1-10 units | |
| 21 | Thermal insulation type | Non-insulated / Insulated | |
| Running gear | |||
| 22 | Axle | 13T HCSV drum brake, Kormee ABS, long screw automatic slack adjusters FUWA BPW TCOK L1 | |
| 23 | Landing gear | 28T, Brand FUWA, JOST | |
| 24 | Tire | 12R22.5, 13R22.5, 65R22.5, 80R22.5, 1200R20 | |
| 25 | Tire number | 6, 8, 12, 16 | |
| 26 | Rim material | Steel, Aluminium | |
| 27 | Rim number | 6, 8, 12, 16 | |
| 28 | Suspension | 13mm*90mm*10pcs 16mm*90mm*10pcs | |
| 1. Iron/Aluminum secondary beams + iron accessories (tool box , guardrail, ladder, anti-slip walkway, bumper, lampshade, rear mudguard), aluminum alloy folding handrails without handles, rubber hose box ;valve box 2. Two sets of 8KG fire extinguisher and boxes. 3. Two discharge hoses 4. One set of anti-static grounding tape, one spare frame, one spare tire handle, two leg handles, reducer joint and other factory-standard essential accessories; 5. Paste the reflective strips and reflective tapes * Customization available for special requirements | |||
Anti-static and anti-overflow protection systems.
Strong sealing performance and smooth unloading.
Available in different compartments and volume options.
Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.
