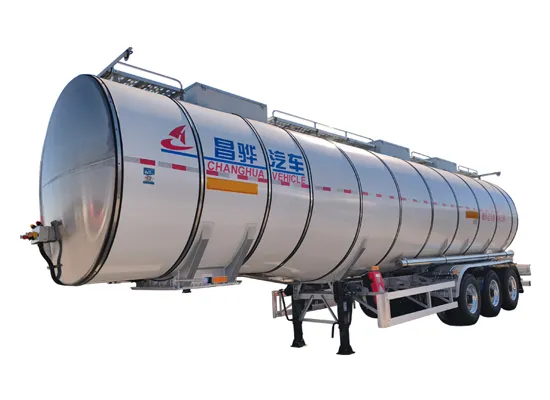

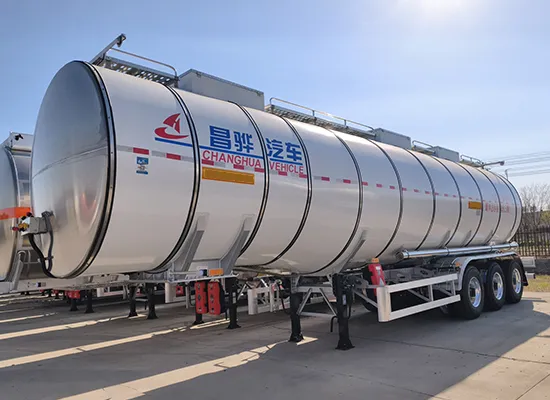

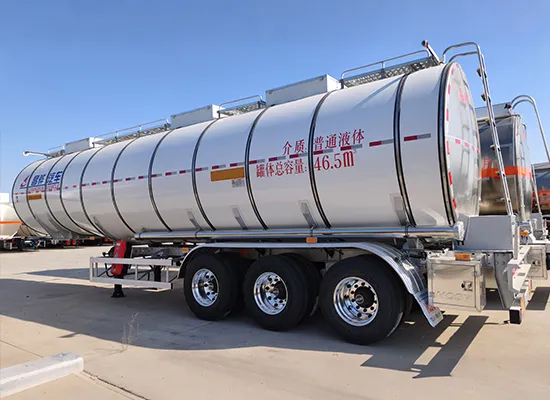

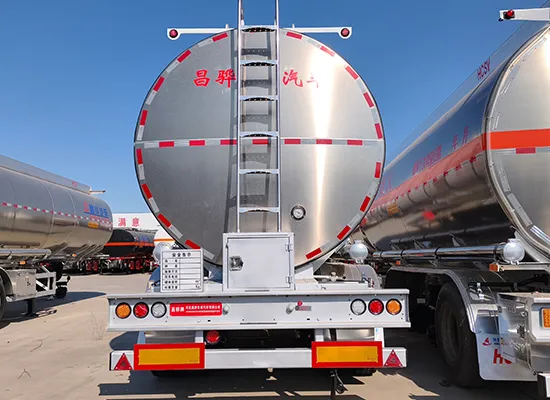

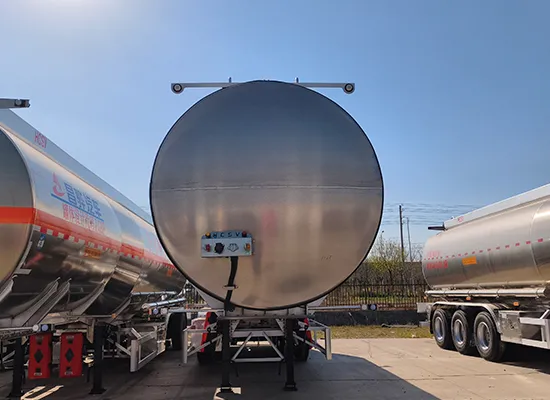

Ordinary Liquid Insulated Semi-Trailer

This is a specialized semi-trailer for carrying non-hazardous ordinary liquids, with a maximum transport density of 705 kg/m³.It features a double-layer insulated gooseneck tank available in two thicknesses to ensure dependable temperature control.

Get A Quote

Ordinary Liquid Insulated Semi-Trailer Technical Parameter

Tank trailer information
2	King pin	50#,90#
3	Tank volume（m³）	45.8m³(valid volume)
4	Overall dimension	11900mm2500mm3900mm
5	Curb weight(kg)	7700,7600,7500,7300,7220
6	Load capacity(kg)	32300,32400,32500,32700,32780

Tank body
6	Medium	Ordinary liquid（Prohibition of transporting dangerous goods）
7	Tank material	stainless steel
8	Beam material	carbon steel
8	Tank structure	Goose neck type
9	Insulation thickness	30mm,50mm

10	insulation construction	Double-layer insulation structure
10	Maximum density of the transported medium	705kg/m³
11	Compartment number	1 unit

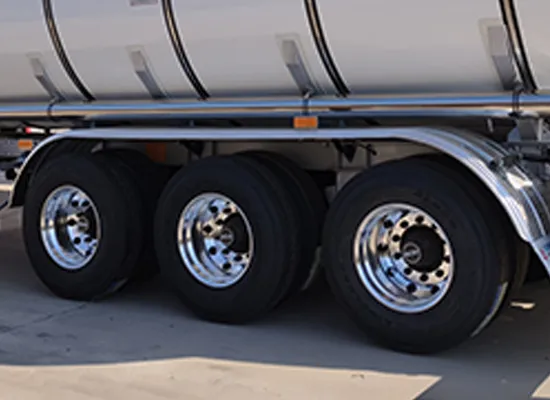

Running gear
12	Number of axles	3



13	Tire	11R22.5 12PR,12R22.5 12PR
14	wheel base	6030+1310+1310
15	track rear	1840/1840/1840
16	Tank body protective material	carbon steel，aluminium alloy
