Hebei Changhua Star Vehicle Co., Ltd.

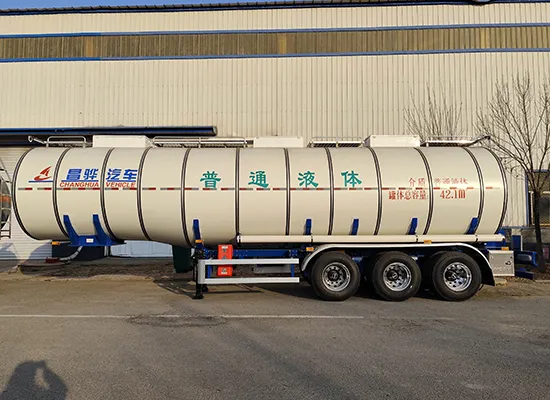

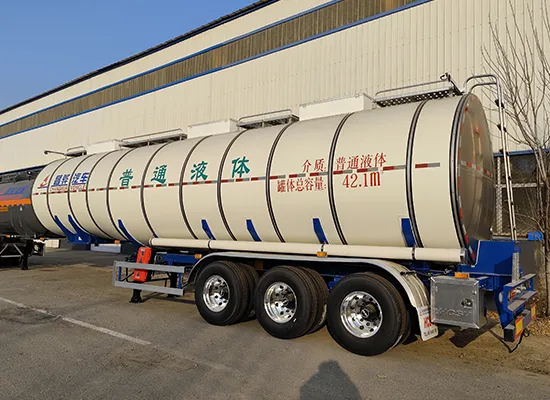

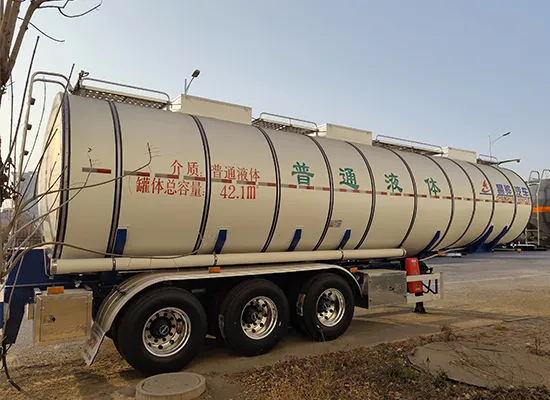

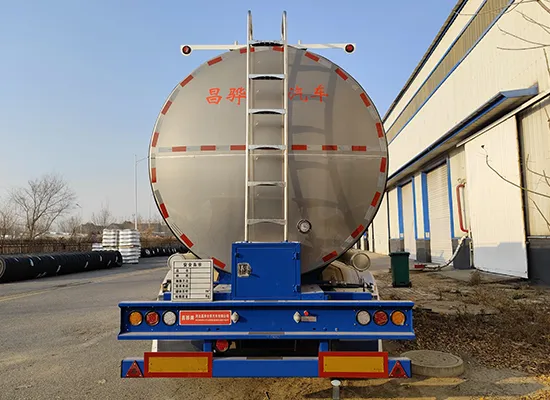

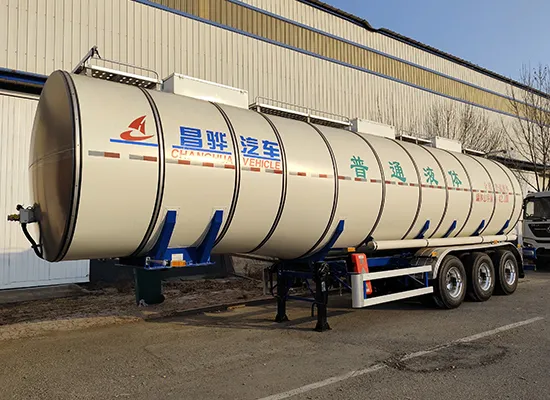

Stainless Steel Insulated Semi-Trailer

This is a non-hazardous liquid transport semi-trailer manufactured is designed to transport ordinary liquids with a maximum density of 810 kg/m³. This trailer stands out for its double-layer insulated gooseneck tank, effectively maintaining temperature stability for sensitive cargo. With a payload of up to 33,150 kg and a durable 3-axle design, it combines high strength with reduced weight for efficient operation.

Get A Quote

Stainless Steel Insulated Semi-Trailer Technical Parameter

Tank trailer information
2King pin50#,90#
3Tank volume(m³)40.12m³(valid volume)
4Overall dimension11400mm*2500mm*3870mm
5Curb weight(kg)7500,7000,6850
6Load capacity(kg)32500,33000,33150


Tank body
7MediumOrdinary liquid(Prohibition of transporting dangerous goods)
8Tank materialstainless steel
9Beam materialcarbon steel
10Tank structureGoose neck type
11Insulation thickness30mm,50mm
12insulation constructionDouble-layer insulation structure
13Compartment number1 unit


Running gear
14Number of axles3
15Tire11R22.5 12PR,12R22.5 12PR
16wheel base5530+1310+1310
17track rear1840/1840/1840
18Tank body protective materialcarbon steel,aluminium alloy




Get in Touch with HCSV for Trailers & Tankers
Get in Touch with HCSV for Trailers & Tankers

Ready to upgrade your fleet? Contact us now for competitive pricing, fast delivery, and tailored trailer solutions built for your success.

No.999, Haihua South Street, Huanghua City, Cangzhou City, Hebei Province
