Hebei Changhua Star Vehicle Co., Ltd.

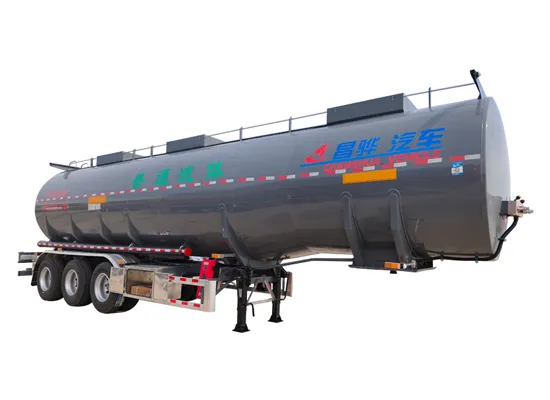

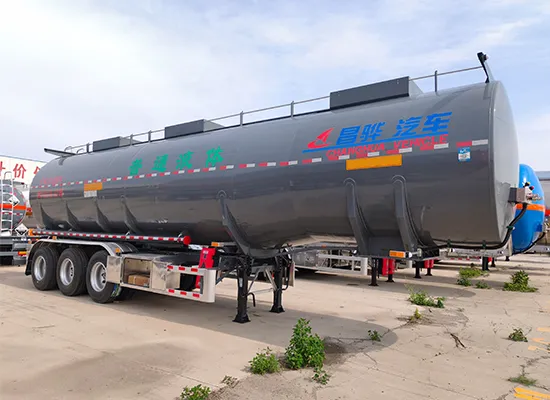

Stainless Steel Semi-Trailer

This is a specialized semi-trailer engineered for transporting non-hazardous ordinary liquids with a maximum density of 800 kg/m³.Key advantages begin with its robust gooseneck tank structure, which provides a generous 43 m³ capacity.  Furthermore, operators can specify an optional air suspension for enhanced driving comfort and cargo protection, offering valuable operational flexibility.

Get A Quote

Stainless Steel Semi-Trailer Technical Parameter


Tank trailer information
2King pin50#,90#
3Tank volume(m³)41m³(valid volume)
4Overall dimension11600mm*2500mm*3850mm
5Curb weight(kg)7200,7000,6800,6700,6550
6Load capacity(kg)32800,33000,33200,33300,33450


Tank body
6MediumOrdinary liquid(Prohibition of transporting dangerous goods)
7Tank materialstainless steel
8Beam materialcarbon steel
8Tank structureGoose neck type
10Maximum density of the transported medium800kg/m³
11Compartment number1 unit


Running gear
12Number of axles3
13Tire11R22.5 12PR,12R22.5 12PR
14wheel base5780+1310+1310
15track rear1840/1840/1840
16Tank body protective materialcarbon steel,aluminium alloy
