Hebei Changhua Star Vehicle Co., Ltd.

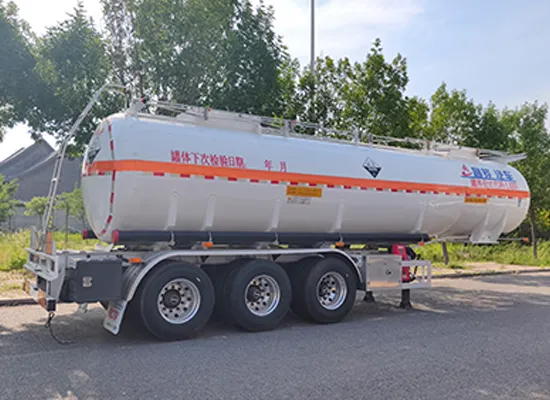

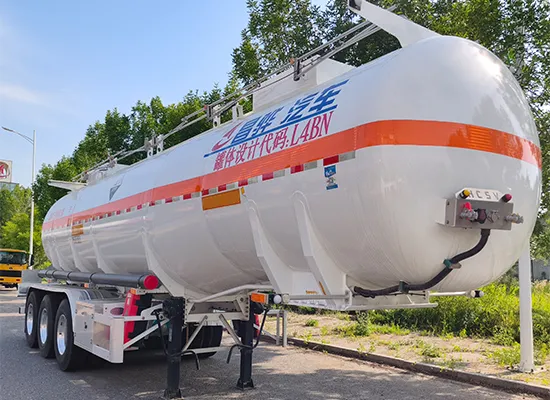

Stainless Steel Flammable Liquid Tank Semi-Trailer

This is stainless steel flammable liquid tank semi-trailer is built for uncompromising safety and durability. Its corrosion-resistant stainless steel tank ensures long service life and broad chemical compatibility. Integrated emergency shut-off valves, anti-static systems, and rollover protection significantly reduce transport risks. An optimized lightweight design boosts legal payload capacity without sacrificing structural strength. Fully compliant with dangerous goods regulations, it delivers reliable, low-maintenance performance for your hazmat logistics.

Get A Quote

Stainless Steel Flammable Liquid Tank Semi-Trailer Technical Parameter

Tank trailer information
1King pin50#,90#
2Tank volume(m³)46.76m³(valid volume)
3Overall dimension12700/12900mm*2500mm*3850mm
4Curb weight(kg)7500,7300,7100,7000,6820
5Load capacity(kg)32500,32700,32900,33000,33180


Tank body
6Mediumflammable liquid
7Tank materialstainless steel
8Beam materialcarbon steel
9Tank structureGoose neck type
10Maximum density of the transported medium695kg/m³
11Compartment number1 unit

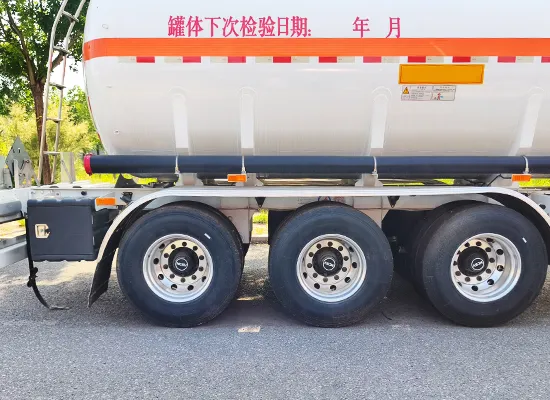

Running gear
12Number of axles3
13Tire11R22.5 12PR,12R22.5 12PR
14wheel base6680+1310+1310,6830+1310+1310
15track rear1840/1840/1840
16Tank body protective materialcarbon steel,aluminium alloy
17suspension systemair suspension
