Recently, Hebei Changhua Star Vehicle Co., Ltd. officially introduced its core product, the HCH9404GDYY Liquid Nitrogen Trailer, to the market. Designed for the extreme cryogenic characteristics of liquid nitrogen (UN1977) with a boiling point of -196°C, this model focuses on regional distribution and in-plant transfer needs in industrial gas distribution, medical cold chain, electronics manufacturing, food quick-freezing and other industries. Supported by high-vacuum multi-layer insulation technology, it delivers low evaporation loss, lightweight carrying capacity and all-dimensional safety protection, injecting new technical momentum into the domestic 35-40 m³ cryogenic liquid transport segment.
As hazardous chemical transportation regulations continue to improve and terminal distribution demands become increasingly fragmented, the cryogenic liquid transport industry is shifting from simply 'being able to deliver' toward 'delivering stably and economically.' As a widely used refrigerated liquefied gas, liquid nitrogen faces two core challenges in transportation. First, even a small amount of heat ingress can cause the liquid to gasify and expand, leading to product evaporation loss and potentially causing overpressure in the tank. Second, long-distance bumps and temperature changes can damage the tank insulation structure and shorten equipment life. In this context, static evaporation rate has become a core indicator for evaluating cryogenic liquid semi-trailer performance, directly determining operators' costs and safety margins. The R&D logic of the HCSV HCH9404GDYY Liquid Nitrogen Trailer is built around the core goal of 'locking in low temperature and controlling loss.'
As the core support for overall vehicle performance, high-vacuum multi-layer insulation technology creates a dense protective barrier for cryogenic media. The tank adopts a double-layer nested structure. The inner vessel is made of austenitic stainless steel S30408 with excellent low-temperature resistance, enabling it to withstand -196°C extreme cold without brittle fracture and ensuring structural stability for medium storage. The outer vessel uses high-strength low-alloy steel plate, combining impact resistance and pressure-bearing capability. It provides physical protection for the internal insulation structure and stable mechanical support for the interlayer vacuum environment. The outer shell is treated with an anti-corrosion coating to effectively extend service life under complex operating conditions.
The interlayer between the inner and outer vessels is the core of insulation performance. Through strict processes, HCSV treats the interlayer as a high-vacuum space, blocking heat conduction and convection from the source. At the same time, dozens of layers of composite insulation material made of aluminum foil and low-thermal-conductivity glass fiber paper are wrapped inside the interlayer, forming multiple insulation barriers around the inner vessel and minimizing thermal radiation. Thanks to strict quality control in the vacuum extraction process and optimized insulation materials, the HCH9404GDYY achieves an industry-leading static evaporation rate. Even during unloading queues or overnight detention, it can substantially reduce product loss caused by safety valve venting and directly improve profit per trip.

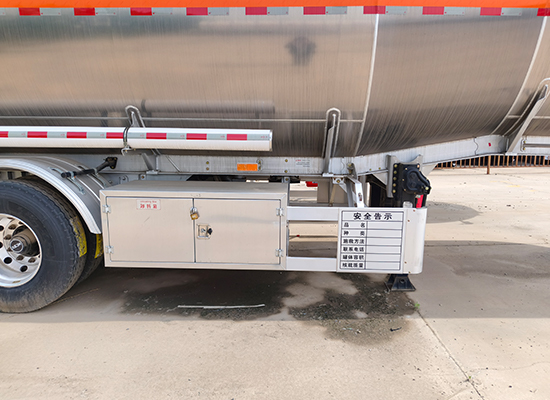

While ensuring core insulation performance, the HCH9404GDYY also balances lightweight design and carrying capacity in its chassis and running gear, accurately matching operators' need for higher efficiency. To address industry concerns about tare weight, this model uses multiple technical solutions for weight reduction and efficiency improvement. The tank adopts strain-strengthening technology, in which the stainless steel vessel is over-pressurized to improve material performance and optimize wall thickness while maintaining structural strength. Side guards, toolboxes and other accessories use aluminum alloy extensively to further reduce curb weight. Within the regulatory gross weight limit of 40,000 kg, lower tare weight means higher compliant loading capacity, helping fleets carry hundreds of kilograms more liquid nitrogen per trip under strict overload-control road environments and creating stable long-term revenue gains.
In terms of driving stability, the model is equipped with an air suspension system as standard. It not only improves comfort during empty running, but more importantly cushions micro-vibrations caused by long-distance bumps, preventing performance degradation of the vacuum insulation layer and extending the service life of the tank insulation structure. The braking system is matched with an EBS electronic braking system and disc brakes, keeping vehicle posture more stable on long downhill sections and during emergency braking. This effectively suppresses the impact of internal liquid sloshing on the interlayer structure. Heavy-duty linked landing gear and branded kingpins also support frequent drop-and-hook operations and complex plant-area conditions, ensuring connection reliability and operating efficiency.
As hazardous chemical transport equipment, safety design is always the core bottom line. The HCH9404GDYY's pipeline and safety system design balances operating convenience with risk prevention, creating a full-chain safety protection system. The rear operation box adopts an integrated layout, with pressure gauges, liquid level gauges and gas/liquid outlet valves arranged centrally. Flange connections are secure and reliable, enabling one operator to complete pipe connection work and improving loading and unloading efficiency. Liquid level measurement uses differential-pressure or imported capacitive level gauges with excellent anti-interference performance, effectively avoiding reading errors caused by low-temperature fluctuations and ensuring accurate level monitoring. A primary mechanical safety valve is installed on the tank's inner vessel. In extreme conditions such as accidental vacuum loss in the interlayer or rapid tank pressure rise, the safety valve can open immediately for pressure relief, preventing overpressure risks from the structural level.
The complete vehicle also improves anti-static and emergency support systems. It is equipped with an anti-static rubber grounding strip, and all tank flanges are bonded for equipotential connection to eliminate static accumulation risks. Fire extinguishers and emergency leak-plugging tools are provided as standard, fully meeting hazardous chemical transportation regulatory requirements and providing sufficient safety redundancy for daily operation.
For end users, the value of high-quality equipment lies not only in performance parameters, but also in ease of use and reliability throughout the operating cycle. For daily liquid nitrogen transport maintenance, HCSV provides clear operation and maintenance guidance for this model. Before first filling, the tank should be pre-cooled with a small flow of liquid nitrogen, and high-flow filling should begin only after stable liquid appears at the discharge port, avoiding tank structure damage caused by severe temperature shock. During operation, the interlayer vacuum degree can be checked regularly through the vacuum gauge tube. If abnormal frosting, accelerated pressure rise or other signs appear, the liquid should be unloaded and maintenance performed in time to ensure safe operation. At the same time, the vehicle design fully complies with A2-category refrigerated liquefied gas dangerous goods transportation standards, helping fleets operate compliantly and avoid regulatory risks.
As a new work in the field of cryogenic transport equipment, the HCSV HCH9404GDYY Liquid Nitrogen Trailer deeply integrates new material processes, precision manufacturing technology and cryogenic physics. For fleet managers, choosing transport equipment with low evaporation rate, light tare weight and high safety redundancy essentially empowers both operating efficiency and production safety. The domestic cryogenic transport sector is accelerating toward compliance and refined operation. Leveraging its technical accumulation in special-purpose vehicles, HCSV continues to refine product details around scenario-based demands and provide highly reliable transport solutions for the industry. The launch of the HCH9404GDYY not only enriches the company's cryogenic liquid transport product matrix, but also provides solid equipment support for the stable operation of downstream industrial gas, medical and electronics supply chains.
