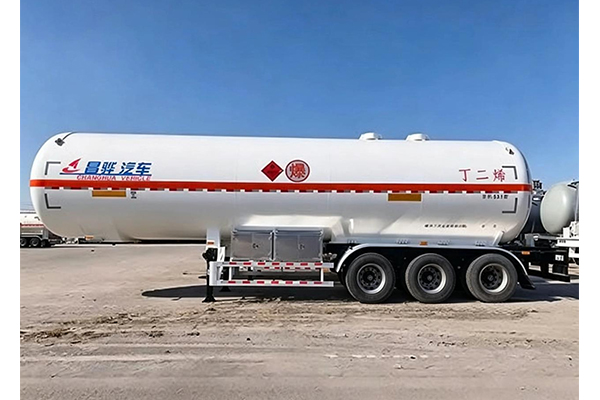

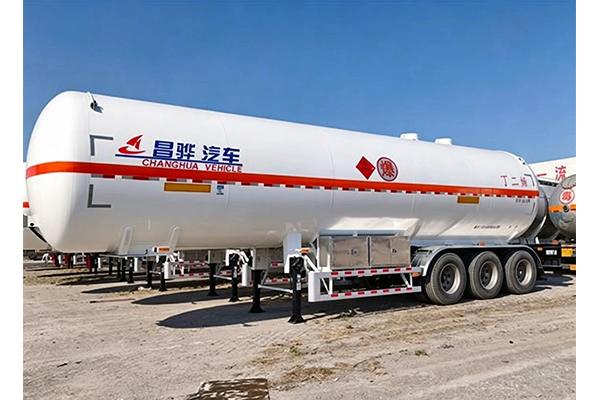

Hebei Changhua Special Vehicle Co., Ltd. has recently unveiled its new HCH9407GYQA liquefied gas transport semi-trailer. Purpose-engineered for 1,3-butadiene – a highly flammable, explosive medium prone to spontaneous polymerization – this model features comprehensive upgrades across tank structure, safety fittings, running gear and regulatory-compliant design. It fully meets the stringent requirements for long-distance trunk haulage and regional distribution of liquefied gases within petrochemical supply chains. Against a backdrop of tightening national hazardous goods transport regulations and steadily rising demand for butadiene shipments driven by downstream synthetic rubber and resin industries, this custom-built tank trailer delivers equipment solutions balancing robust safety, reliability and operational profitability for the sector.
Escalating Industry Demand Poses Dual Safety & Compliance Challenges for Butadiene Transport
As a core chemical monomer for synthetic rubber and synthetic resin manufacturing, 1,3-butadiene ranks among the highest-volume liquefied gases transported across petrochemical supply chains. Its unique chemical properties, however, create significant operational risks. Classified as Category A highly flammable hazardous material, butadiene readily undergoes exothermic spontaneous polymerization during storage and transit. Poor containment can trigger tank overpressure, medium leakage, or even fire and explosion, imposing extremely high standards on pressure resistance and safety protection for transport vehicles.
For liquefied gas carriers, regulatory adherence and operational safety stand as non-negotiable core priorities. With the rollout of new standards including GB 21668-2025 *Structural Requirements for Vehicles Carrying Dangerous Goods*, technical specifications and mandatory safety fittings for hazardous goods transport vehicles have been further raised. Investing in specialized tank trailers engineered from the ground up to match medium characteristics and meet the latest regulatory standards has become a critical prerequisite for fleets to cut costs, boost efficiency and mitigate risks. Changhua’s new HCH9407GYQA liquefied gas semi-trailer is a targeted professional solution addressing the pain points unique to butadiene transportation.
Custom-Built Tank Design Optimized for Medium Properties at the Structural Level
The tank forms the core load-bearing component of any tank semi-trailer. The HCH9407GYQA features full-process structural optimization tailored specifically to the storage and transit properties of butadiene, striking a balanced mix of load capacity, structural rigidity and driving stability.
Optimized Volume Layout Balancing Cargo Capacity and Pressure Resistance
The unit adopts a cylindrical tank with a total volume of 53.1 cubic meters and an effective usable volume of 52.8 cubic meters. The cylindrical design delivers uniform stress distribution, outstanding internal pressure resistance and superior fatigue performance. It reliably accommodates pressure fluctuations during transit, maintains structural stability for butadiene storage and haulage, and suits diverse operational scenarios ranging from long-haul trunk transport to short-distance shuttle deliveries.
Rigorous Manufacturing Processes Underpin Superior Product Quality
The tank is fabricated from premium pressure vessel-grade steel plates whose mechanical performance and chemical compatibility with butadiene have passed stringent validation testing, enabling resistance to both chemical corrosion and mechanical loads encountered in service. Fully automated welding is deployed throughout production, with all longitudinal and circumferential welds subjected to non-destructive testing per industry standards to guarantee consistent, reliable weld integrity. The tank interior undergoes precision polishing with no dead corners or protruding structures, effectively minimizing polymer buildup and medium residue to reduce risks of pipeline blockages and localized heat accumulation. Every finished vehicle undergoes mandatory hydrostatic and air tightness testing before delivery; units are only released once both tests are passed, establishing rigorous quality control from the manufacturing stage.
Integrated Load-Bearing Structure Enhances Driving Stability
Equipped with a frameless integrated load-bearing design, the model cuts curb weight while lowering overall vehicle center of gravity to substantially reduce rollover risks during travel. Multiple saddles and fasteners create rigid connection between the tank and chassis, evenly distributing impact loads generated in transit to prevent tank displacement and structural damage, ensuring structural integrity on rough road surfaces.
Multi-Layer Redundant Safety Systems Cover Full-Scenario Risk Mitigation
Given the high-risk nature of butadiene transport, the HCH9407GYQA is fitted with a complete suite of safety accessories forming a multi-tiered protection system covering pressure control, emergency shutoff and real-time condition monitoring, mitigating hazards across loading/unloading operations, road travel and emergency incidents.

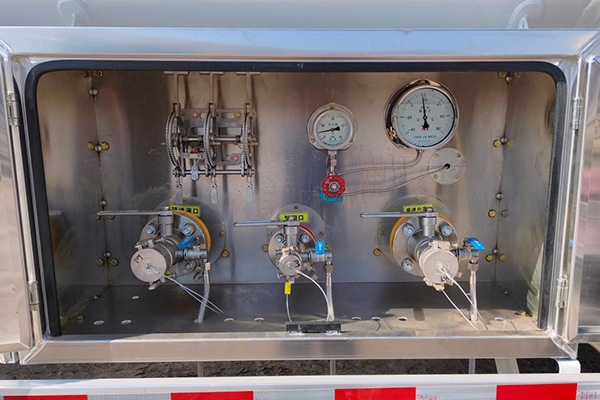

Dual Protection via Pressure Relief and Emergency Cutoff Devices
A full-lift spring safety valve is installed, calibrated precisely to match butadiene storage and transit operating conditions. If internal tank pressure exceeds safe thresholds due to ambient temperature spikes or accidental polymerization, the valve automatically opens to release pressure and eliminate overpressure hazards at the structural level.
Pneumatic emergency shutoff valves come as standard on loading and unloading pipelines. In the event of hose rupture, medium spillage or other incidents during transfer, the valves can isolate fluid flow within seconds to contain leakage spread. The valves also incorporate a thermal fuse shutdown function: they close automatically when exposed to fire and reaching a preset temperature, cutting off fuel supply to ignition sources and vastly boosting safety redundancy under extreme accident conditions.
Real-Time Full-Parameter Monitoring Enables Proactive Risk Alerts
High-precision shock-resistant pressure gauges, bimetallic thermometers and magnetic float / rotary tube level gauges continuously track internal tank pressure, temperature and liquid levels, issuing early warnings of potential risks such as medium self-polymerization and overfilling. All measuring instruments feature explosion-proof construction complying strictly with electrical safety codes for hazardous zones, suitable for the special operating environment of dangerous goods transport.
Fully Upgraded Running Gear Minimizes Accident Risks at the Source
Driving stability directly governs liquid sloshing intensity inside the tank, static electricity generation rates and accident likelihood. The HCH9407GYQA’s running and braking systems receive comprehensive upgrades engineered for the harsh operating conditions of hazardous chemical haulage.
A three-axle configuration delivers balanced axle load distribution and exceptionally smooth ride quality. Standard air suspension efficiently dampens road vibrations to curb violent liquid sloshing within the tank. This reduces static electricity buildup while lessening medium impact on tank heads, indirectly extending tank service life.
The EBS electronic braking system comes factory-fitted, enabling more precise brake force distribution and faster brake response to prevent skidding and fishtailing on slippery road surfaces. Fully compliant with GB 21668-2025, the trailer supports integration with tractor-mounted ESC electronic stability control, AEBS advanced emergency braking and LDW lane departure warning systems, forming a complete active safety suite for vehicle combinations and satisfying all mandatory requirements under the latest regulations.
Lightweight Compliant Design Balances Safety Standards and Operational Profitability
While retaining full structural strength and complete safety fittings, the HCH9407GYQA achieves rational lightweighting through material optimization and structural innovation. Two curb weight options are available: 10,264 kg with a rated payload of 29,736 kg, and 10,795 kg with a rated payload of 29,205 kg. Within the 40-ton maximum gross vehicle weight limit, the design unlocks ample cargo capacity to boost per-trip revenue for transport operators.
In terms of regulatory compliance, the trailer fully meets national mandatory standards including GB 21668-2025 and GB 18564.1. Hazard classification markings, tank reflective markings and speed-limit labels are all installed in line with the latest specifications, ensuring seamless compliance during vehicle registration, annual inspections and operational audits. Additionally, Changhua’s special vehicle parts boast high interchangeability alongside an extensive nationwide after-sales service network, effectively lowering full-lifecycle maintenance costs and improving long-term operational returns for customers.
Butadiene transportation leaves no room for complacency, and professional, reliable transport equipment forms the bedrock of end-to-end safe operations. The Changhua HCH9407GYQA liquefied gas semi-trailer delivers a comprehensive internal-to-external safety barrier via custom tank geometry tailored to medium characteristics, multi-redundant safety protection systems and stable, dependable running gear. It simultaneously satisfies regulatory compliance and delivers tangible operational economic benefits, making it the premium specialized choice for haulage of butadiene and other liquefied gases.
As a leading domestic manufacturer of special vehicles in China, Changhua Special Vehicles consistently centers its product development on real-world demands within hazardous goods transport scenarios, driving product upgrades through technological innovation. Moving forward, the company will continue to deepen its focus on liquefied gas transport equipment, refining product performance and service systems to deliver robust equipment support for safe, efficient petrochemical supply chain operations.
