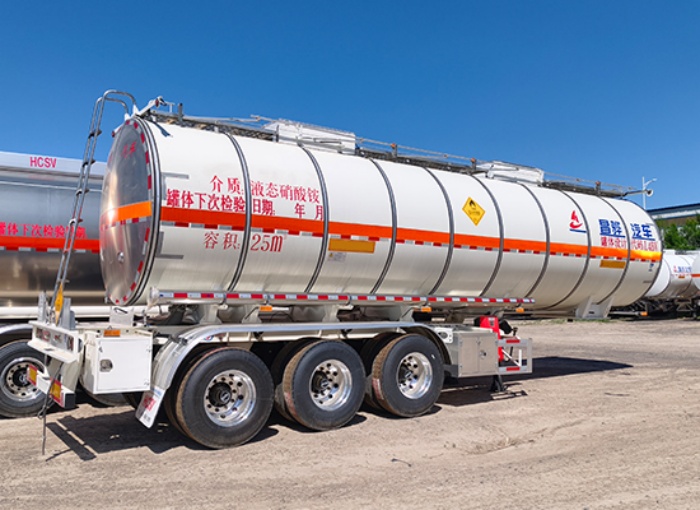

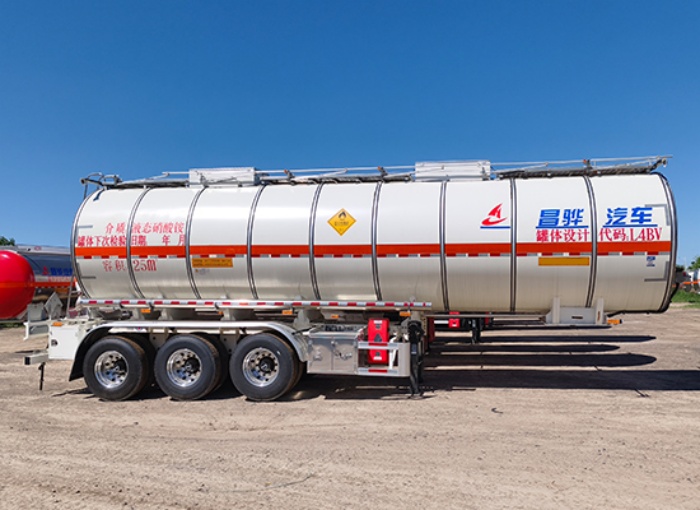

Hebei Changhua Star Vehicle Co., Ltd. (HCSV) has officially unveiled the HCH9401GYWB tank semi-trailer dedicated to Class 5.1 oxidizing dangerous goods. Custom-engineered for the storage and transportation characteristics of liquid ammonium nitrate, this model addresses prevalent industry pain points including pipeline blockage caused by crystallization at low temperatures and thermal decomposition risks under high temperatures. Featuring a three-layer thermal insulation temperature control system, all-round safety protection architecture and lightweight construction, it delivers a professional transportation solution for liquid ammonium nitrate that balances regulatory compliance, operational safety and economic efficiency for the chemical logistics sector.
Tightening Industry Regulations Drive Demand for Specialized Liquid Ammonium Nitrate Transport Equipment
As a vital chemical raw material, liquid ammonium nitrate is widely used in agriculture, mining and chemical manufacturing, with highway haulage serving as its primary regional circulation channel. Classified as Class 5.1 oxidizing hazardous goods, liquid ammonium nitrate demands extremely stringent temperature control during transit. Low ambient temperatures trigger crystallization that clogs pipelines and loading/unloading couplings and hampers operational efficiency; excessive temperatures may induce thermal decomposition, posing severe safety hazards.
Meanwhile, China’s regulatory framework for hazardous chemical transportation continues to be strengthened, with stricter mandates for dedicated vehicles and medium compatibility. Converted general tank trucks can no longer satisfy the compound requirements of temperature safety, regulatory compliance and cost control, fueling rising market demand for customized specialized transport equipment.
Against this backdrop, leveraging its accumulated technological expertise in hazardous chemical transport equipment, HCSV developed a full-spectrum product design tailored to liquid ammonium nitrate’s physical properties and launched the HCH9401GYWB oxidizing substance tank semi-trailer, resolving core operational challenges across four dimensions: temperature regulation, safety performance, lightweight construction and maintenance efficiency.
Three-Layer Thermal Insulation System Solves Core Temperature Control Challenges
Temperature management constitutes the key technical threshold for liquid ammonium nitrate haulage and the standout advantage of the HCH9401GYWB model. The tank adopts a three-layer composite structure: inner tank + thermal insulation layer + outer protective shell, forming a fully sealed thermal barrier to sustain stable medium temperatures over long-distance journeys.
Two insulation thickness options (160mm and 210mm) are available to accommodate divergent climatic conditions across northern and southern China. The stainless steel inner tank delivers superior corrosion resistance and high cleanliness, eliminating oxidation risks triggered by impurity contamination and preserving medium purity during transit. The intermediate high-performance insulation layer forms a dense heat-insulating structure that stabilizes internal medium temperatures even at -20°C, eliminating the need for mid-journey reheating on long-haul routes and drastically boosting transport productivity. The outer sealed casing blocks rainwater and moisture penetration to prevent insulation material degradation, maintaining consistent thermal performance throughout the vehicle’s service life.
Beyond tank insulation, the unit is equipped with a real-time temperature monitoring system that tracks medium temperatures continuously for driver visibility of operating conditions. To mitigate crystallization risks during unloading, integrated pipeline preheating functionality heats delivery lines prior to discharge, fundamentally preventing pipeline blockages and ensuring seamless loading and unloading workflows.
Comprehensive Safety Protection Compliant with Oxidizing Medium Transport Standards
To address the strong oxidizing nature and inherent hazards of liquid ammonium nitrate, the HCH9401GYWB establishes multi-tiered safety safeguards spanning tank construction and chassis configuration, fully aligning with hazardous goods transportation safety codes.
Tank Structure Safety
The all-stainless steel inner tank undergoes precision surface finishing and seamless weld polishing, with no redundant internal piping or sanitary dead spaces. This simplifies post-transport cleaning and minimizes medium residue and sedimentation risks. All sealing components are fabricated from specialized oxidation-resistant materials to enable fully sealed transit, preventing medium contamination and leakage and fully meeting regulatory requirements for dedicated ammonium nitrate transport vehicles.
The elliptical tank body fitted with multiple anti-surge baffles effectively mitigates liquid sloshing impact during travel and reduces rollover risks. Optimized dished heads deliver more uniform stress distribution and superior pressure-bearing capacity compared with conventional flat heads. The entire tank is engineered and manufactured in accordance with national standard GB 18564.1, and undergoes rigorous factory testing including hydrostatic pressure and air tightness inspections to guarantee structural reliability from production.
Active Safety Configurations
An emergency shut-off valve is installed at the tank base, with flow-limiting protection devices fitted on unloading pipelines. In the event of accidental pipeline rupture, the system automatically cuts off fluid flow instantly to contain medium leakage and spread. The chassis fully complies with the latest national standard GB 21668-2025, equipped with an EBS electronic braking system, brand-name axles and widened brake shoes for enhanced braking performance and driving stability. Standardized reflective markings and dedicated Class 5.1 oxidizing goods hazard labels are affixed across the vehicle to meet road transport compliance criteria.
Lightweight Construction Balancing Profitability and Maintainability
Amid sustained overloading regulation enforcement, curb weight directly determines haulage operators’ profit margins. Without compromising structural integrity or safety hardware, the HCH9401GYWB achieves optimized lightweight design via upgraded materials and structural refinement: the tank uses high-strength stainless steel, the frame adopts high-tensile steel, and lightweight air suspension is offered as an optional upgrade. The minimum kerb weight reaches 6.82 tons, enabling larger payloads than peer models and boosting per-trip revenue.
Reduced dead weight also cuts fuel consumption. Industry calculations indicate that every 1-ton weight reduction of the semi-trailer lowers fuel usage by 2–3 liters per 100 kilometers, generating substantial long-term operational cost savings.

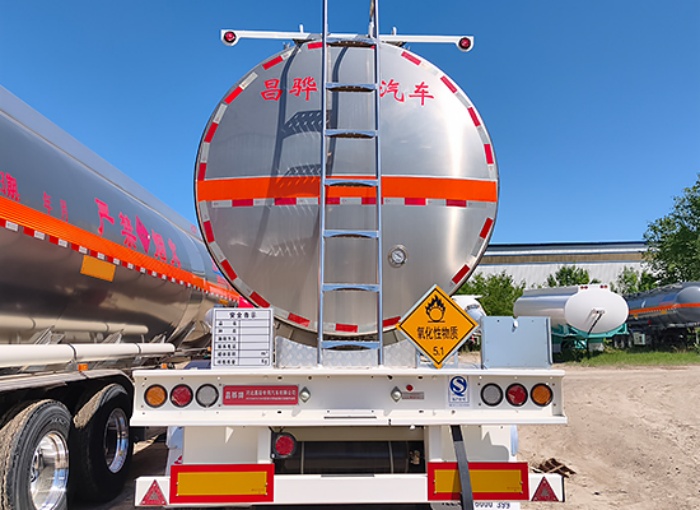

Human-centric design upgrades further simplify maintenance: anti-slip walkways with safety guardrails line the tank top, and an integrated rear ladder streamlines access. Unloading control mechanisms are centrally arranged to enhance daily operational safety and convenience. Consumable components such as seals and valves adopt universal industry specifications, while the outer insulation shell features modular panels that allow partial replacement without full disassembly following localized damage. All chassis parts are compatible with mainstream commercial vehicle maintenance networks, ensuring easy spare parts procurement and low upkeep expenses, effectively minimizing full-lifecycle maintenance costs.
Liquid ammonium nitrate transportation carries extremely low fault tolerance. Purpose-built for the medium’s unique properties, the HCSV HCH9401GYWB oxidizing substance tank semi-trailer delivers targeted optimizations in thermal insulation temperature control, full-range safety shielding, lightweight weight reduction and low maintenance expenditure, offering a highly tailored professional transport solution for the industry.
As a core domestic manufacturer of hazardous chemical transport equipment, HCSV prioritizes scenario-driven R&D and technological breakthroughs targeting transportation pain points for specialized mediums. Moving forward, the company will continue to deepen its focus on hazardous chemical transport equipment, iterating product technologies and service systems to deliver robust equipment support for safe, compliant and efficient chemical logistics operations worldwide.
