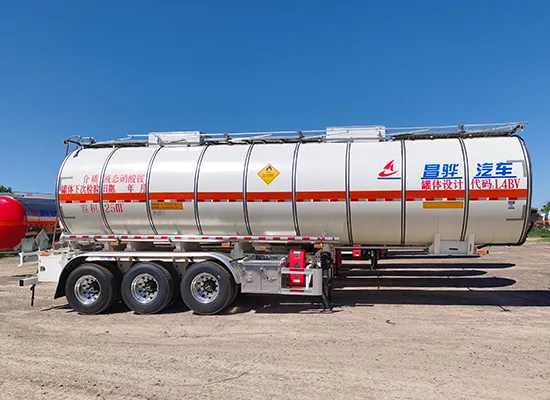

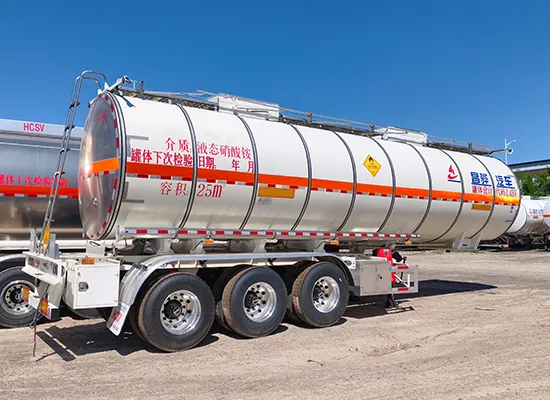

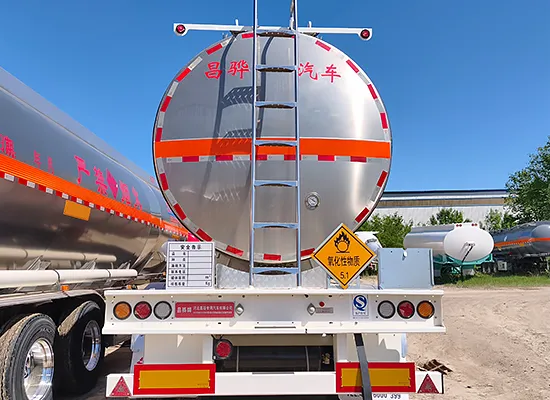

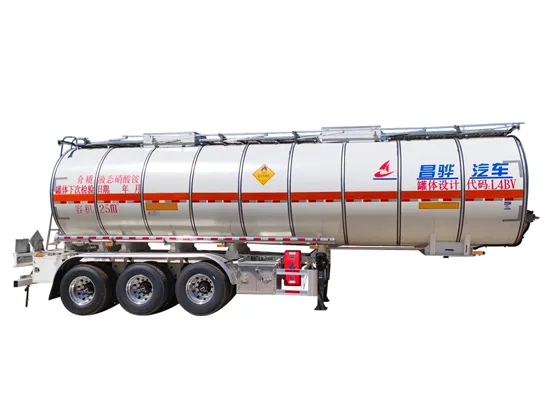

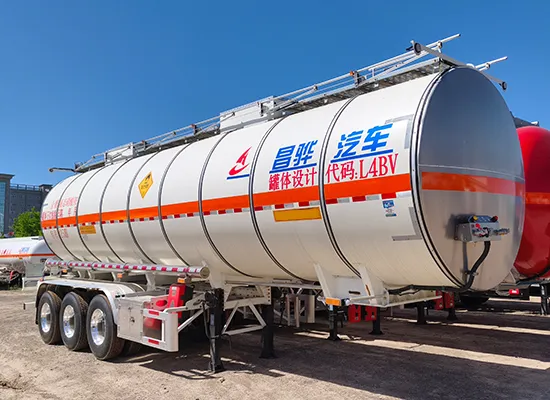

Ammonium Nitrate Tank Trailer

This specialized tanker is engineered for safe and efficient transport of Class 5.1 oxidizing substances, particularly liquid ammonium nitrate solution and hydrogen peroxide. Its insulated tank design (210mm/160mm options) precisely controls medium temperature, preventing hazardous oxidation reactions. Lightweight construction maximizes payload capacity while reducing operational costs.  Built with rigorous quality standards, this durable semi-trailer delivers exceptional reliability and long-term value, making it the premium choice for chemical logistics fleets.

Get A Quote

Ammonium Nitrate Tank Trailer Technical Parameter

Tank trailer information
1Product modelHCH9401GYWB
2King pin50#,90#
3Tank volume(m³)23.89m³(valid volume)
4Overall dimension10450mm*2500mm*3900mm
5Curb weight(kg)7500,7300,7100,7000,6820
6Load capacity(kg)32500,32700,32900,33000,33180
Tank body
6MediumLiquid ammonium nitrate
7Tank materialstainless steel
8Beam materialcarbon steel
9Insulation thickness210mm,160mm
10Maximum density of the transported medium1360kg/m³
11Compartment number1 unit

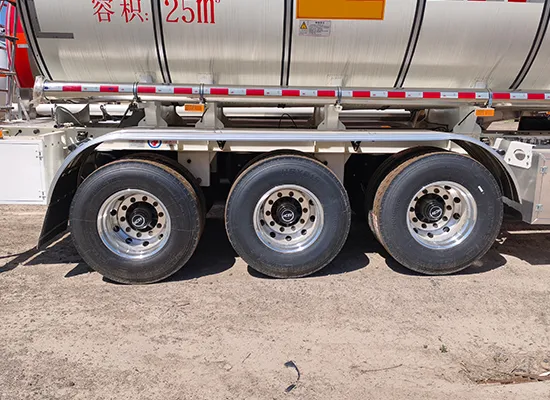

Running gear
12Number of axles3
13Tire11R22.5 12PR,12R22.5 12PR
14wheel base4850+1310+1310
15track rear
1840/1840/1840
16Tank body protective materialcarbon steel,aluminium alloy
17suspension systemair suspension
