Hebei Changhua Star Vehicle Co., Ltd.

Liquid Ethylene Trailer

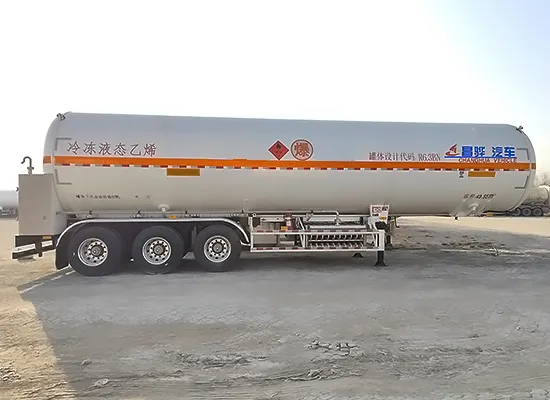

This is a specialized semi-trailer for transporting refrigerated liquid ethylene, a highly volatile cryogenic flammable gas. Its standout advantage is the vacuum-powder insulated double-layer tank, which rigorously minimizes heat ingress to maintain stable ultra-low temperatures, ensuring cargo integrity. Safety features include an EBS for responsive braking control and optional air suspension that effectively absorbs road shocks, significantly enhancing stability for this hazardous load.

Get A Quote

Liquid Ethylene Trailer Technical Parameter

Tank trailer information
1Product modelHCH9408GRY41Z
2King pin50#,90#
3Tank volume(m³)49.54m³(valid volume)
4Overall dimension12400/12600mm*2500mm*3850mm
5Curb weight(kg)14700
6Load capacity(kg)25300
Tank body
6MediumFrozen liquid ethylene
7Tank materialcarbon steel
8Beam materialcarbon steel
8Tank structureStraight beam type,Double-layer structure of the can body
9Unit volumetric filling mass510.66kg/m³
10can bodyDouble-layer insulation structure
Running gear
12Number of axles3
13Tire11R22.5 12PR,12R22.5 12PR
14wheel base6460+1310+1310,6550+1310+1310
15track rear1840/1840/1840
16Tank body protective materialcarbon steel,aluminium alloy
17suspension systemair suspension
