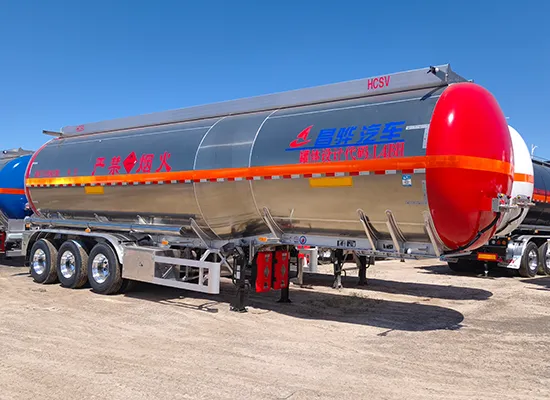

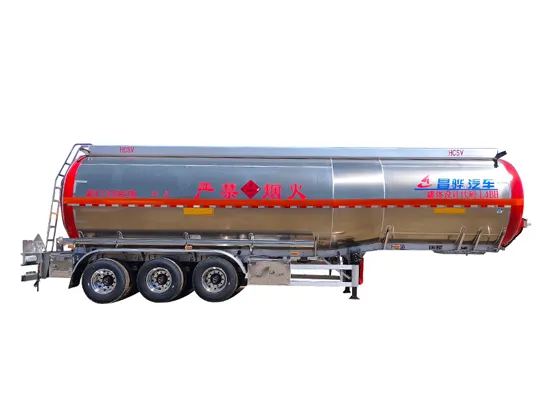

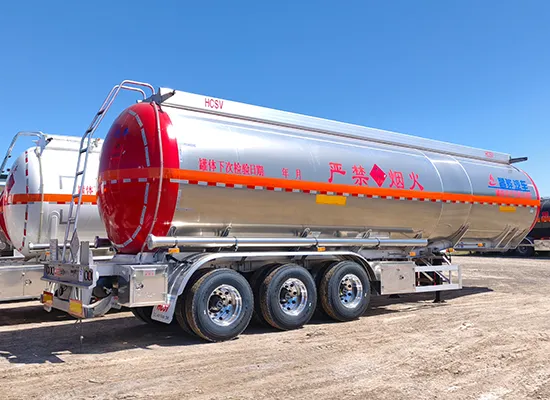

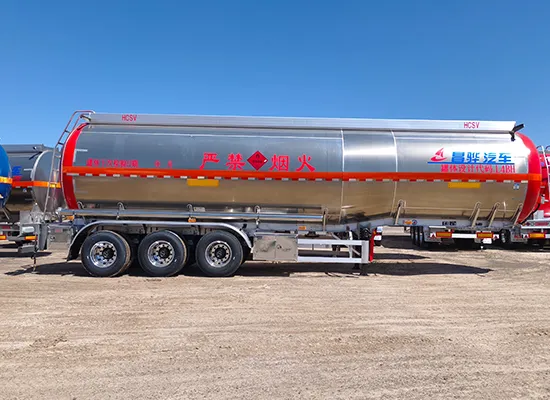

Red Header Tank Trailer

This aluminum tanker is engineered for high-efficiency dangerous liquid transportation, especially for gasoline, naphtha and other flammable light oil cargo. Its lightweight aluminum structure boosts actual payload and cuts fuel consumption greatly. Fine welding craft and outstanding anti-corrosion performance effectively prolong service lifespan. The polished seamless tank guarantees safe delivery and stable running performance.

Get A Quote

Red Header Tank Trailer Technical Parameter

Tank trailer information
1Product modelHCH9407GRY49
2King pin50#,90#
3Tank volume(m³)46.8m³(valid volume)
4Overall dimension12400/12800/12050mm*2500mm*3900/3950mm
5Curb weight(kg)6300,6000,5730
6Load capacity(kg)33700,34000,34270
Tank body
6Mediumflammable liquid
7Tank materialaluminium alloy
8Beam materialcarbon steel
8End coverElliptical head
10Maximum density of the transported medium720kg/m³
11Compartment number1 unit

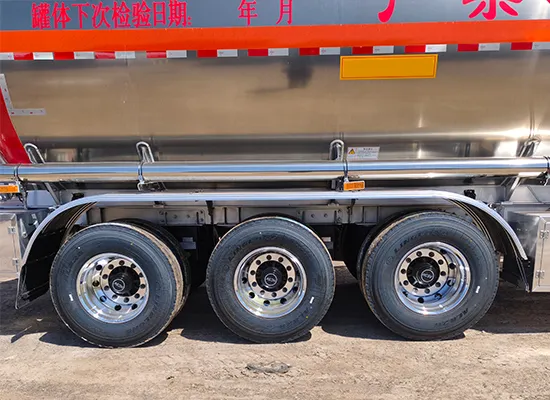

Running gear
12Number of axles3
13Tire11R22.5 12PR,12R22.5 12PR
14wheel base6380+1310+1310,6680+1310+1310,6080+1310+1310
15track rear1840/1840/1840
16Tank body protective materialcarbon steel,aluminium alloy
17suspension systemair suspension
