Carbon Steel Semi-Trailer

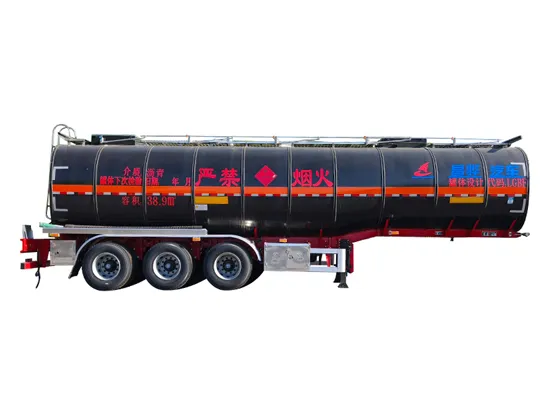

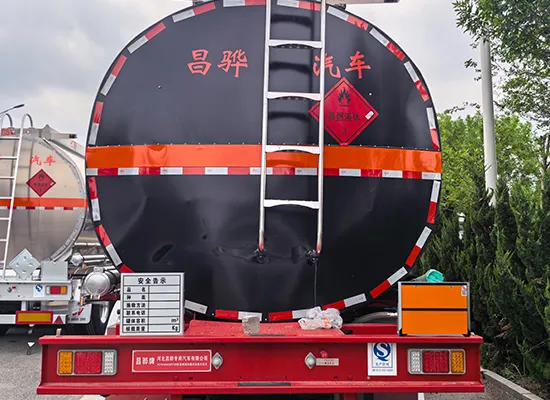

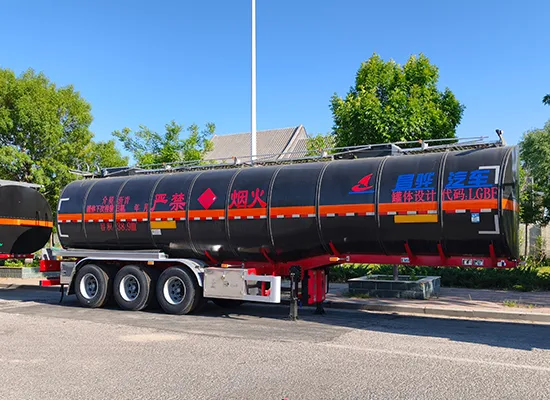

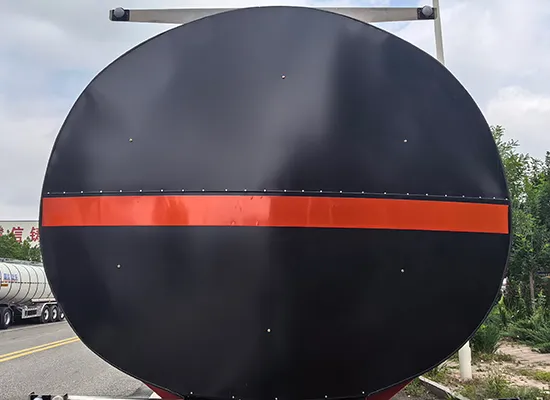

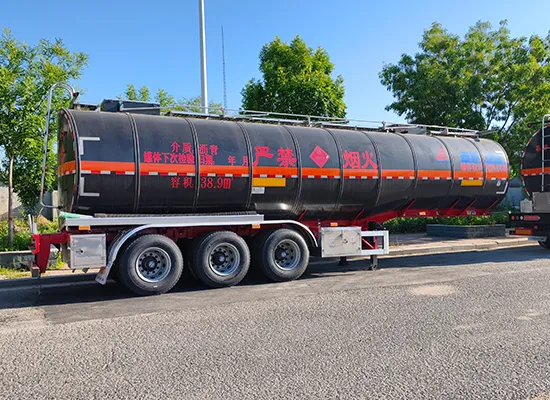

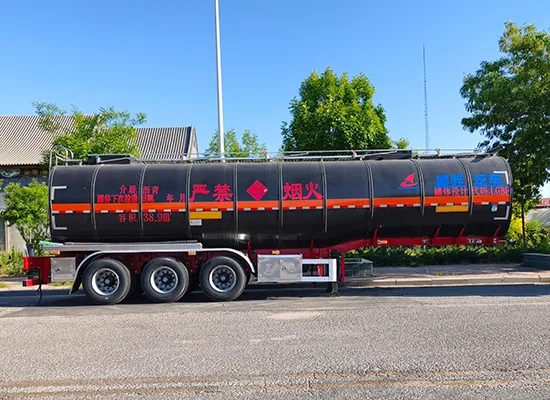

This is a specialized semi-trailer designed for transporting hot liquid bitumen at high temperatures. Its primary advantage lies in the double-layer insulated tank structure, ensuring safe and efficient long-distance delivery of high-temperature liquid asphalt. Additionally, lightweight yet durable aluminum alloy side guards and high-strength steel rear guards offer enhanced structural protection. This makes it a durable and reliable solution for demanding asphalt logistics.

Get A Quote

Carbon Steel Insulated Semi-Trailer Technical Parameter


Tank trailer information
1Product modelHCH9406GRY39
2King pin50#,90#
3Tank volume(m³)37.12m³(valid volume)
4Overall dimension11000mm*2500mm*3750mm
5Curb weight(kg)9000,8300
6Load capacity(kg)31000,31700
Tank body
6MediumAsphalt,flammable liquid
7Tank materialcarbon steel
8Beam materialcarbon steel
8Tank structureGoose neck type
9Insulation thickness80mm
10insulation constructionDouble-layer insulation structure
10Maximum density of the transported medium835kg/m³
11Compartment number1 unit
Running gear
12Number of axles3
13Tire11R22.5 12PR,12R22.5 12PR
14wheel base5250+1310+1310
15track rear1840/1840/1840
16Tank body protective materialcarbon steel,aluminium alloy
17suspension systemair suspension
