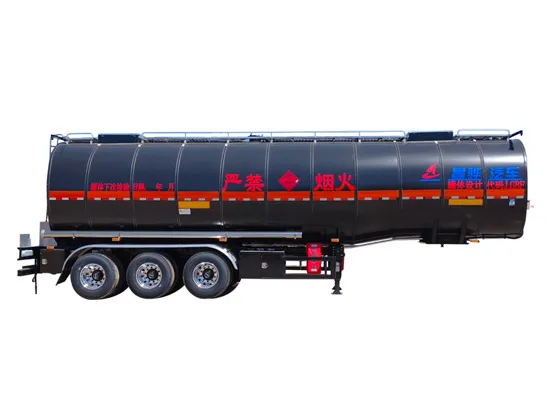

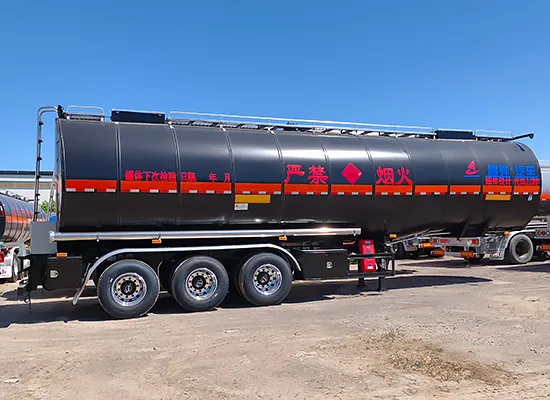

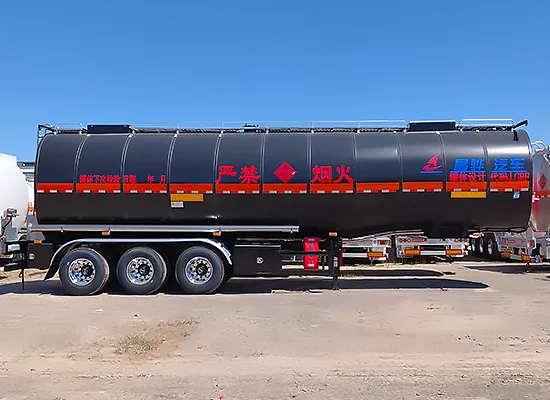

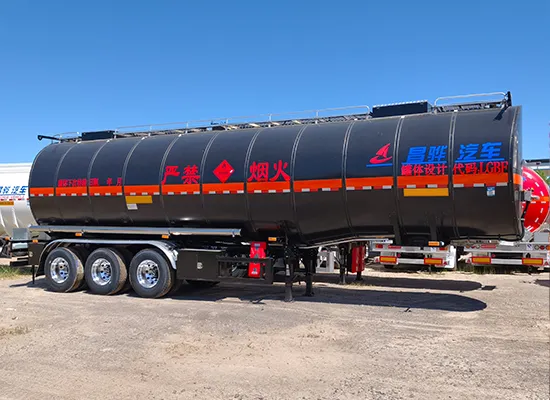

Carbon Steel Liquid Trailer

Engineered for high-efficiency fuel and flammable liquid transportation, with 8,300-9,000kg curb weight, delivering up to 31,700kg payload capacity at 40,000kg gross weight . Its 38.75m³ double-layer insulated tank maintains optimal cargo temperature. Precision welding and anti-corrosion properties significantly extend service life. This 3-axle semi-trailer offers exceptional fuel efficiency and cost-effectiveness, making it the premium choice for modern hazardous material transport fleets.

Get A Quote

Carbon Steel Liquid Trailer Technical Parameter

Tank trailer information
1Product modelHCH9408GRY41Z
2King pin50#,90#
3Tank volume(m³)38.75m³(valid volume)
4Overall dimension11550mm*2550mm*3930mm
5Curb weight(kg)9000,8700,8500,8300
6Load capacity(kg)31000,31300,31500,31700
Tank body
6Mediumflammable liquid
7Tank materialcarbon steel
8Beam materialcarbon steel
8Tank structureGoose neck type
9Insulation thickness110mm,90mm,60mm
10insulation constructionDouble-layer insulation structure
10Maximum density of the transported medium800kg/m³
11Compartment number1 unit

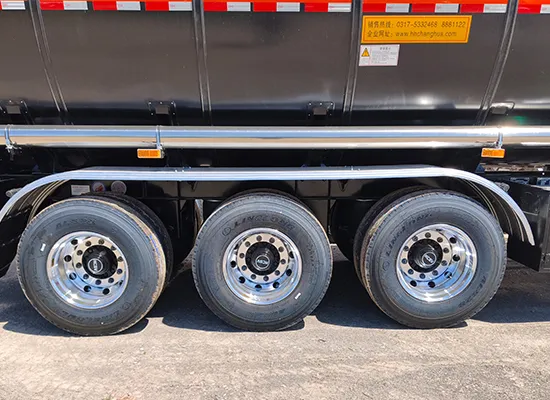

Running gear
12Number of axles3
13Tire12R22.5 12PR
14wheel base5510+1310+1310
15track rear1840/1840/1840
16Tank body protective materialcarbon steel,aluminium alloy
17suspension systemair suspension
